112160 -

RF / Coaxial Connector, BNC Coaxial, Straight Jack, Crimp, 50 ohm, RG174, RG188A, RG316

112160 - RF / Coaxial Connector, BNC Coaxial, Straight Jack, Crimp, 50 ohm, RG174, RG188A, RG316

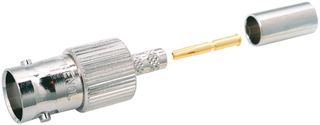

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
112160
Newark Part No.:
99H4294

Product Overview

The 112160 is a RF Connector, BNC series, BNC Straight Crimp Jack with gold-plated phosphor bronze contacts. Body made up of brass with nickel-plated finish and Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature, lightweight units useable up to 11GHz and typically yield low reflection through 4GHz. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for LMR-100, M17/119-RG174, RG-174, RG-188, RG-188A and RG-316 cable.
  • Standard polarity
  • 5000MΩ Minimum insulation resistance
  • 500 Mating cycles
  • -40 to 85°C Temperature range

Applications

RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation

Product Information

:
BNC Coaxial
:
Straight Jack
:
Crimp
:
50ohm
:
RG174, RG188A, RG316
:
Phosphor Bronze
:
Gold Plated Contacts
:
4GHz
:
Cable Mount
:
-
Find similar products Choose and modify the attributes above to find similar products.

Related Searches

638 In stock

for same day shipping

see cut-off times

Check stock and lead times
More stock available week commencing 11/12/17
$4.13 $ 4.13
Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price
1 + $4.13
10 + $3.97
50 + $3.48
100 + $3.30
250 + $2.89
500 + $2.81
1000 + $2.40
2500 + $2.24
No longer stocked:: No Longer Manufactured::
Add to Cart
Total Price:
Total Price: ( )
Total Price: --

Customer Reviews

Customer Q&A Exchange

(There are 2 questions : 2 answers on this product)

Product Q&A

Ask your questions. Share your answers.



Browse Q&A


Search Questions
Need Product Support?
If you need immediate technical support use Live Support or Contact Us.
This space is yours...
Use this space to Ask your peers product questions or Answer those questions posted by them.
Sort by
Details:
Can you suggest a suitable hand crimp tool for crimping BNC jack (part number 112160)?
2 years, 8 months ago
by
NewarkTechSupp
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
Suggested part number of hand crimp tool which can be used to crimp this plug is 47-10150 from Amphenol.
2 years, 7 months ago
by
NewarkTechSupport
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
Details:
Looking for a suitable coaxial cable for BNC jack (part number 112160)
2 years, 8 months ago
by
NewarkTechSupp
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
According to datasheet, this jack can be crimped onto RG-174/U, 188A/U or 316/U coaxial cables. Suggested part number of coaxial cable is MRG316.0125 from Belden.
2 years, 7 months ago
by
NewarkTechSupport
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
