AMPHENOL FCI  DD24W7SA00LF  Combination Layout D Sub Connector, 681M Series, DD-24W7, Receptacle, 17 Contacts, 7, Solder

AMPHENOL FCI DD24W7SA00LF
AMPHENOL FCI DD24W7SA00LF
Technical Data Sheet (424.41KB) EN See all Technical Docs

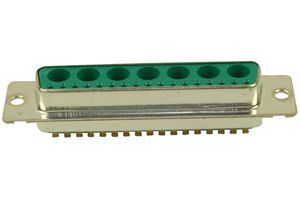

Image is for illustrative purposes only. Please refer to product description.

AMPHENOL FCI DD24W7SA00LF
AMPHENOL FCI DD24W7SA00LF

Product Overview

The DD24W7SA00LF is a D-sub female Connector Socket with solder bucket. It has phosphor bronze contact with thermoplastic insulation.
  • UL94V-0 Flammability rating
  • ≥5000MΩ Insulation resistance
  • ≤7.3mΩ Contact resistance
  • 7.5A Current rating(Nominal)
  • 200 Mating cycles
  • -55 to 125°C Temperature range

Product Information

Product Range:
681M Series
Insert Arrangement:
DD-24W7
Gender:
Receptacle
No. of Signal Contacts:
17Contacts
No. of Power Positions:
7
Contact Termination Type:
Solder
D Sub Shell Size:
DD
Connector Body Material:
Metal Body
Contact Plating:
-
Contact Termination:
Solder
No. of Mating Cycles:
200
Contact Material:
-
No. of Contacts:
24
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Communications & Networking;
  • Computers & Computer Peripherals;
  • Industrial

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
