Banana Test Connector, 4mm, Plug, Cable Mount, 24 A, 1 kV, Nickel Plated Contacts, Blue

934099102 - Banana Test Connector, 4mm, Plug, Cable Mount, 24 A, 1 kV, Nickel Plated Contacts, Blue

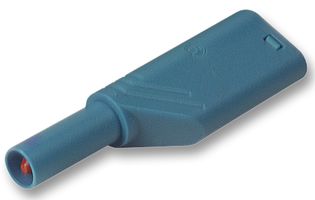

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
934099102
Newark Part No.:
97K2822
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
Plug
:
Cable Mount
:
24A
:
1kV
:
Nickel Plated Contacts
:
Blue
:
Brass
:
Screw
:
-
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The LAS S WS series from Hirschmann are 4mm rigid spring loaded safety plugs. These are safety connectors for tower construction with screw connection for leads from 0.5mm² to 1.5 mm² and 4.2mm maximum lead outer diameter. Simple assembly by Click-System.
  • IEC 61010 measurement category
  • Screw termination
  • Rated voltage of AC/DC 1000V
  • Rated current of 24A
  • Contact resistance is 10mohm
  • Nickel plated brass contact
  • Contact spring material is beryllium copper
  • UL 94 V-2 approved polyamide (PA) housing material
  • Temperature range from -15°C to +70°C
  • Available in variety of colours

Applications

Test & Measurement

Associated Products

Compare Selected

Related Searches

88 In stock

for same day shipping

see cut-off times

Check stock and lead times
More stock available week commencing 11/06/18
$4.49 $ 4.49
Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price
1 + $4.49
100 + $4.21
250 + $3.93
500 + $3.65
1000 + $3.37
