2601B -

Source Measure Unit, 2600B Series, Current/Resistance/Voltage Measure, Current/Voltage Source

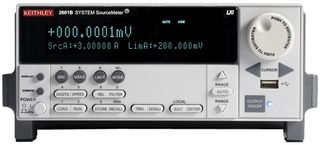

KEITHLEY 2601B
KEITHLEY 2601B
KEITHLEY 2601B

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEITHLEY KEITHLEY
Manufacturer Part No:
2601B
Newark Part No.:
44W8033
Product Range
2600B Series
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
2600B Series
:
Current/Resistance/Voltage Measure, Current/Voltage Source
:
40.4W
:
± 100mV to ± 40V
:
± 100nA to ± 10A
:
500nohm to 40Tohm
:
1 Year
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The Model 2601B SourceMeter SMU instrument, is a new and improved one channel SMU instrument with a tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to automated production test. In addition to retaining all the features of the Model 2601A, the Model 2601B has 6½-digit resolution, USB 2.0 connectivity, and software command emulation of the Model 2400 SourceMeter SMU Instrument that enables easy migration of legacy test code. The Model 2601B model is equipped with Keithley's high speed TSP technology (over 190% faster than traditional PC-to-instrument communication techniques,) which dramatically improves the system-level speed to lower the cost of test.
  • Single channel model with 40W power output
  • 4 quadrant source/measure with 6½-digit resolution
  • Current Max/Min: 3A DC, 10A pulse/100fA
  • Voltage Max/Min: 40V/ 100nV
  • Built-in "Plug & Play" Java-Based I-V characterization and test software
  • TSP (Test Script Processing) technology embeds complete test programs inside the instruments
  • TSP-Link expansion technology for multi-channel parallel test
  • Software emulation for Keithley's Model 2400 SourceMeter SMU Instrument
  • Large, easy-to-read, dual line display

Applications

Sensing & Instrumentation, Signal Processing, Test & Measurement

Contents

Model 2600-KIT Screw Terminal Connector Kit, Series 2600B System SourceMeter CD, Model 2602B Quick Start Guide, Series 2400 Emulation Script for Series 2600B, Model 7709-308A DB25 Male Connector Kit (Solder Cup) with Shell, Model CA-180-3A TSP-Link Cable & Test Script Builder Software Suite CD.

Substitutes

Compare Selected
Manufacturer Part Number
Newark Part No.
Manufacturer / Description
Avail
Price For
Quantity

Related Searches

3 In stock

for same day shipping

see cut-off times

Check stock and lead times

2 Further stock expected to ship on 5-Oct-2017

More stock available week commencing 23/10/17
$10,010.00 $ 10,010.00
Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price
1 + $10,010.00
No longer stocked:: No Longer Manufactured::
Add to Cart
Total Price:
Total Price: ( )
Total Price: --

Customer Reviews

Customer Q&A Exchange

(There are 3 questions : 3 answers on this product)

Product Q&A

Ask your questions. Share your answers.



Browse Q&A


Search Questions
Need Product Support?
If you need immediate technical support use Live Support or Contact Us.
This space is yours...
Use this space to Ask your peers product questions or Answer those questions posted by them.
Sort by
Details:
Looking for a rackmount kit which can be used to mount one source meter (part number 2601B)
1 year, 10 months ago
by
NewarkTechSupp
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
4299-1 from Keithley may be used to rack mount this source meter. This kit can be used for rack mounting one source meter.
1 year, 10 months ago
by
NewarkTechSupport
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)

Q:
1 answer

Kit contents of 2601B

Details:
What are all the accessories included with source meter (part number 2601B)
1 year, 10 months ago
by
NewarkTechSupp
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
According to supplier, the source meter 2601B from Keithley is supplied with following accessories -
Model 2600-KIT Screw Terminal Connector Kit
Series 2600B System SourceMeter CD
Model 2602B Quick Start Guide
Series 2400 Emulation Script for Series 2600B
Model 7709-308A DB25 Male Connector Kit (Solder Cup) with Shell
Model CA-180-3A TSP-Link Cable
Test Script Builder Software Suite CD
1 year, 10 months ago
by
NewarkTechSupport
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
Details:
Looking for a rackmount kit which can be used to mount two source meters (part number 2601B)
1 year, 10 months ago
by
NewarkTechSupp
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
4299-2 from Keithley may be used to rack mount this source meter. This kit can be used for rack mounting two source meters.
1 year, 10 months ago
by
NewarkTechSupport
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
