Ceramic Chip Capacitor Array

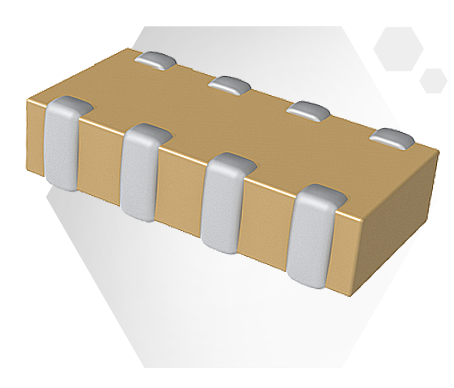

KEMET’s Ceramic Chip Capacitor Array in C0G dielectric is an advanced passive technology where multiple capacitor elements are integrated into one common monolithic structure. Array technology promotes reduced placement costs and increased throughput.

  • −55°C to +125°C operating temperature range
  • Superior flex performance (up to 5 mm)
  • Saves both circuit board and inventory space
Ceramic Chip Capacitor Array

Product Description.

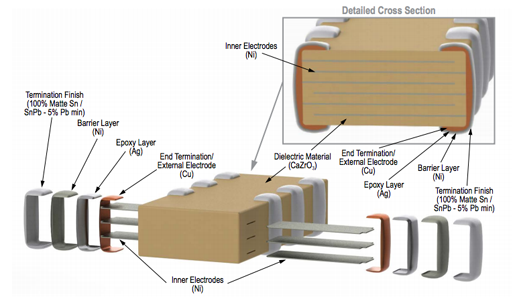

This is achieved by alternatively placing one device rather than two or four discrete devices. Use of capacitor arrays also saves board space which translates into increased board density and more functions per board. Arrays consume only a portion of the space required for standard chips resulting in savings in inventory and pick/place machine positions. For added reliability, KEMET's Flexible Termination technology has been incorporated in order to provides superior flex performance.

This technology was developed to address flex cracks, which are the primary failure mode of MLCCs and typically the result of excessive tensile and shear stresses produced during board flexure and thermal cycling. Flexible Termination technology inhibits the transfer of board stress to the rigid body of the MLCC, therefore mitigating flex cracks which can result in low IR or short circuit failures. KEMET’s C0G dielectric features a 125°C maximum operating temperature and is considered “stable. "The Electronics Industries Alliance (EIA) characterizes C0G dielectric as a Class I material.

Components of this classification are temperature compensating and are suited for resonant circuit applications or those where Q and stability of capacitance characteristics are required. C0G exhibits no change in capacitance with respect to time and voltage and boasts a negligible change in capacitance with reference to ambient temperature. Capacitance change is limited to ±30 ppm/ºC from −55°C to +125°C. KEMET automotive grade array capacitors meet the demanding Automotive Electronics Council's AEC-Q200 qualification requirements

Ceramic Chip Capacitor Array

Benefits

  • −55°C to +125°C operating temperature range
  • Superior flex performance (up to 5 mm)
  • Saves both circuit board and inventory space
  • Reduces placement costs and increases throughput
  • Lead (Pb)-Free, RoHS and REACH compliant
  • EIA 0508 (2-element) and 0612 (4-element) case sizes
  • DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, and 200 V
  • Capacitance offerings ranging from 10 pF to 2,200 pF



  • Available capacitance tolerances of ±5%, ±10%, and ±20%
  • Non-polar device, minimizing installation concerns
  • 100% pure matte tin-plated termination finish allowing for excellent solderability
  • SnPb termination finish option available upon request (5% Pb minimum)
  • Commercial and Automotive (AEC–Q200) grades available
Product Series
Compare Selected Compare Add Selected Add
  Manufacturer Part No Newark Part No. Manufacturer / Description
Avail Price for:
Price
Quantity
CA064C100J5GACTU
CA064C100J5GACTU

31Y0656

KEMET - Capacitor Array, 10 pF, 5%, 4, 50 V, 0612 [1632 Metric], SMD

Capacitor Array, 10 pF, 5%, 4, 50 V, 0612 [1632 Metric], SMD ;RoHS Compliant: Yes

2,480 in stock

+ Check Stock & Lead Times

5-7 days shipping for in stock items

More stock available week commencing 05/02/18

Each (Supplied on Cut Tape)

Delivery in 10-15 days from our UK warehouse for in stock items

10+ $0.729 25+ $0.638 50+ $0.531 100+ $0.446 250+ $0.374 500+ $0.319 1000+ $0.26 More Pricing...

Add
Min: 1 Mult: 10
CA064C102K5RACTU
CA064C102K5RACTU

31Y0661

KEMET - Capacitor Array, 1000 pF, - 10%, 4, 50 V, 0612 [1632 Metric], SMD

Capacitor Array, 1000 pF, - 10%, 4, 50 V, 0612 [1632 Metric], SMD ;RoHS Compliant: Yes

125 in stock

+ Check Stock & Lead Times

5-7 days shipping for in stock items

More stock available week commencing 04/12/17

Each (Supplied on Cut Tape)

Delivery in 10-15 days from our UK warehouse for in stock items

10+ $0.341 25+ $0.312 50+ $0.282 100+ $0.253 250+ $0.237 500+ $0.22 1000+ $0.188 More Pricing...

Add
Min: 1 Mult: 10
CA064C103K3RACTU
CA064C103K3RACTU

31Y0662

KEMET - Capacitor Array, 0.01 F, 10%, 4, 25 V, 0612 [1632 Metric], SMD

Capacitor Array, 0.01 F, 10%, 4, 25 V, 0612 [1632 Metric], SMD ;RoHS Compliant: Yes

1,780 in stock

+ Check Stock & Lead Times

5-7 days shipping for in stock items

More stock available week commencing 04/12/17

Each (Supplied on Cut Tape)

Delivery in 10-15 days from our UK warehouse for in stock items

10+ $0.455 25+ $0.394 50+ $0.335 100+ $0.274 250+ $0.263 500+ $0.25 1000+ $0.225 More Pricing...

Add
Min: 1 Mult: 10
CA064C104K4RACTU
CA064C104K4RACTU

31Y0665

KEMET - Capacitor Array, 0.1 - F, - 10%, 4, 16 V, 0612 [1632 Metric], SMD

Capacitor Array, 0.1 - F, - 10%, 4, 16 V, 0612 [1632 Metric], SMD ;RoHS Compliant: Yes

749 in stock

+ Check Stock & Lead Times

5-7 days shipping for in stock items

More stock available week commencing 04/12/17

Each (Supplied on Cut Tape)

Delivery in 10-15 days from our UK warehouse for in stock items

10+ $0.473 25+ $0.433 50+ $0.393 100+ $0.352 250+ $0.329 500+ $0.306 1000+ $0.26 More Pricing...

Add
Min: 1 Mult: 10
CA064C220J5GACTU
CA064C220J5GACTU

31Y0669

KEMET - Capacitor Array, 22 pF, 5%, 4, 50 V, 0612 [1632 Metric], SMD

Capacitor Array, 22 pF, 5%, 4, 50 V, 0612 [1632 Metric], SMD ;RoHS Compliant: Yes

2,677 in stock

+ Check Stock & Lead Times

5-7 days shipping for in stock items

More stock available week commencing 05/02/18

Each (Supplied on Cut Tape)

Delivery in 10-15 days from our UK warehouse for in stock items

10+ $0.729 25+ $0.638 50+ $0.531 100+ $0.446 250+ $0.374 500+ $0.319 1000+ $0.26 More Pricing...

Add
Min: 1 Mult: 10
CA064C222K5RACTU
CA064C222K5RACTU

31Y0671

KEMET - Capacitor Array, 2200 pF, 10%, 4, 50 V, 0612 [1632 Metric], SMD

Capacitor Array, 2200 pF, 10%, 4, 50 V, 0612 [1632 Metric], SMD ;RoHS Compliant: Yes

3,700 in stock

+ Check Stock & Lead Times

5-7 days shipping for in stock items

More stock available week commencing 04/12/17

Each (Supplied on Cut Tape)

Delivery in 10-15 days from our UK warehouse for in stock items

10+ $0.472 25+ $0.41 50+ $0.349 100+ $0.287 250+ $0.274 500+ $0.261 1000+ $0.24 More Pricing...

Add
Min: 1 Mult: 10
CA064C472K5RACTU
CA064C472K5RACTU

31Y0678

KEMET - Capacitor Array, 4700 pF, 10%, 4, 50 V, 0612 [1632 Metric], SMD

Capacitor Array, 4700 pF, 10%, 4, 50 V, 0612 [1632 Metric], SMD ;RoHS Compliant: Yes

2,475 in stock

+ Check Stock & Lead Times

5-7 days shipping for in stock items

More stock available week commencing 18/12/17

Each (Supplied on Cut Tape)

Delivery in 10-15 days from our UK warehouse for in stock items

10+ $0.485 25+ $0.421 50+ $0.359 100+ $0.296 250+ $0.283 500+ $0.269 1000+ $0.247 More Pricing...

Add
Min: 1 Mult: 10
