L-COM  UPMAA-05M  USB Cable Assembly, USB Type A Receptacle, USB Type A Plug, USB 2.0, 19.7 ", 500 mm, Grey

L-COM UPMAA-05M
Technical Data Sheet (65.47KB) EN See all Technical Docs

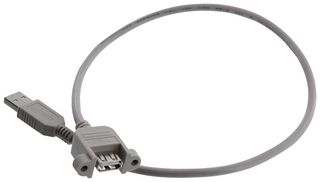

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The UPMAA-05M is a 500mm USB 2.0 panel mount Computer Cable, USB type A coupler, female bulkhead/type A male. This USB cable is perfect for use inside a box or enclosure. The USB type A female side is flange-style panel mountable with an alternative, smaller body compared to the popular ECF504 series. This makes it a nice fit in applications with limited space. The moulded panel mountable USB construction is rugged and robust, using 20AWG power conductors and a 28AWG twisted pair all under a double shield for maximum EMI resistance.
  • Allows USB cables to be passed through panels or enclosures
  • 30μ" Gold-plated contacts, provides reliable connections with repeated mating cycles
  • 4-40 UNC-2B Thread size

Product Information

Connector Type A:
USB Type A Receptacle
Connector Type B:
USB Type A Plug
USB Standard:
USB 2.0
Cable Length - Imperial:
19.7"
Cable Length - Metric:
500mm
Jacket Color:
Grey
Product Range:
-
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Computers & Computer Peripherals

Contents

Computer cable, 2-piece 4-40 x 3/8-inch Phillips pan head mounting screws.

Legislation and Environmental

RoHS Compliant:
Yes
