MX-PTZ -

Precision Tweezer, Hand-Piece, for use with MX-500/5000/5200 Soldering & Rework Systems

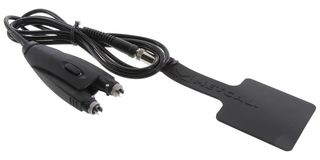

METCAL MX-PTZ

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
METCAL METCAL
Manufacturer Part No:
MX-PTZ
Newark Part No.:
95M8557
Product Range
MX-500 Series
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
Precision Tweezer
:
OK Internationals MX-500 Soldering System
:
MX-500 Series
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The MX-PTZ is a Precision Tweezer Hand-piece for the MX-500, MX-5000 and MX-5200 soldering and rework series systems. Adjustable tip alignment for both height and rotation ensures co-planarity of the tip cartridges. Dual position pitch-switch enables adjustment of pincer-action, adjusting to the component width and improves operator ergonomic.
  • Lightweight and ergonomic
  • Quick change tip cartridges with keyway to prevent miss-alignment
  • 178cm/70" Hand-piece cable length

Applications

Maintenance & Repair

Footnotes

No stand or tip/cartridge included.

Substitutes

Compare Selected
Manufacturer Part Number
Newark Part No.
Manufacturer / Description
Avail
Price For
Quantity

Associated Products

Compare Selected

Related Searches

4 In stock

for same day shipping

see cut-off times

Check stock and lead times
More stock available week commencing 07/08/17
$455.64 $ 455.64
Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price
1 + $455.64
No longer stocked:: No Longer Manufactured::
Add to Cart
Total Price:
Total Price: ( )
Total Price: --

Customer Reviews

Customer Q&A Exchange

(There is 1 question : 1 answer on this product)

Product Q&A

Ask your questions. Share your answers.



Browse Q&A


Search Questions
Need Product Support?
If you need immediate technical support use Live Support or Contact Us.
This space is yours...
Use this space to Ask your peers product questions or Answer those questions posted by them.
3 months ago
by
Anonymous
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
The distance between a set of tip cartridges (Newark - 95M8557) when it is fully open is 26mm. However the tips used were PTTC-701B (Newark - 40P1969), they are at an angle from the shafts of the tips it measures 28mm, there would be a greater distance if straight tips are used. The distance will depend on what tip is used as they are all different thicknesses and sizes.
