MURATA POWER SOLUTIONS  UCQ-3.3/30-D48NB-C  Isolated Board Mount DC/DC Converter, Low Profile, Fixed, 1 Output, 36 V, 75 V, 99 W, 3.3 V

MURATA POWER SOLUTIONS UCQ-3.3/30-D48NB-C
MURATA POWER SOLUTIONS UCQ-3.3/30-D48NB-C
Technical Data Sheet (461.09KB) EN See all Technical Docs

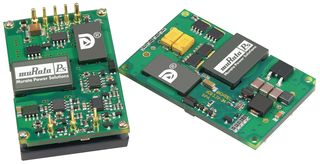

Image is for illustrative purposes only. Please refer to product description.

MURATA POWER SOLUTIONS UCQ-3.3/30-D48NB-C
MURATA POWER SOLUTIONS UCQ-3.3/30-D48NB-C

Product Information

DC / DC Converter Output Type:
Fixed
No. of Outputs:
1 Output
Input Voltage DC Min:
36V
Input Voltage DC Max:
75V
Output Power Max:
99W
Output Voltage Nom.:
Output Current Max:
Output Voltage - Output 1:
3.3V
No. of Outputs:
Output Voltage - Output 2:
-
Output Current - Output 1:
30A
Output Current - Output 2:
-
DC / DC Converter Type:
Quarter Brick
DC / DC Converter Mounting:
Through Hole
Approvals & Standards:
IEC, UL
Width:
36.6mm
Height:
10.2mm
Depth:
58.4mm
Output Voltage - Output 3:
-
Output Current - Output 3:
-
Product Range:
UCQ Series
DC / DC Converter Case Style:
Quarter Brick
Approvals / Standards:
-
Input Voltage VDC:
36V to 75V
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Legislation and Environmental

RoHS Compliant:
Y-Ex
