MBR10100G -

Schottky Rectifier, 100 V, 10 A, Single, TO-220AC, 2 Pins, 800 mV

MBR10100G - Schottky Rectifier, 100 V, 10 A, Single, TO-220AC, 2 Pins, 800 mV
MBR10100G - Schottky Rectifier, 100 V, 10 A, Single, TO-220AC, 2 Pins, 800 mV

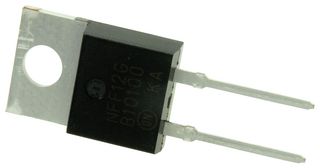

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MBR10100G
Newark Part No.:
45J0796
Product Range
MBR10 Series
Technical Datasheet:
(EN)
See all Technical Docs

Product Overview

The MBR10100G is a Switch-mode Schottky Power Rectifier with epoxy moulded case and all external surfaces corrosion-resistant and terminal leads are readily solderable finish. The power rectifier features guard-ring for stress protection, low stored charge majority carrier conduction and high surge capacity. This Schottky rectifier uses the Schottky barrier principle with a platinum barrier metal.
  • Low forward voltage
  • Low power loss/high efficiency
  • 0.5A Peak repetitive reverse surge current (2.0μs, 1.0kHz)
  • Epoxy meets UL94V-0

Applications

Power Management, Automotive

Warnings

Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product Information

:
100V
:
10A
:
Single
:
TO-220AC
:
2Pins
:
800mV
:
150A
:
175°C
:
MBR10 Series
:
-
Find similar products Choose and modify the attributes above to find similar products.

Substitutes

Compare Selected
Manufacturer Part Number
Newark Part No.
Manufacturer / Description
Avail
Price For
Quantity

MULTICOMP

Schottky Rectifier, 100 V, 10 A, Single, TO-220AC, 2 Pins, 850 mV

3,880 in stock

Each

1+ $0.705 10+ $0.571 50+ $0.426 100+ $0.371 500+ $0.35 1000+ $0.297 5000+ $0.269 10000+ $0.257 More Less

ON SEMICONDUCTOR

Rectifier Diode, Single, 100 V, 10 A, TO-220AC, 2, 800 mV

706 in stock

Each

1+ $1.31 10+ $1.12 100+ $0.854 500+ $0.755 1000+ $0.596 2500+ $0.528 10000+ $0.508 More Less

78,465 in stock

Each

1+ $1.37 10+ $1.17 100+ $0.897 500+ $0.777 1000+ $0.614 2500+ $0.544 10000+ $0.523 More Less

1,015 in stock

Each

1+ $0.552 250+ $0.417 500+ $0.371 1000+ $0.336 5000+ $0.304 More Less

Associated Products

Compare Selected

Related Searches

133 In stock

for same day shipping

see cut-off times

Check stock and lead times
More stock available week commencing 22/10/18
$1.44 $ 1.44
Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price
1 + $1.44
10 + $1.23
100 + $0.939
500 + $0.83
1000 + $0.656
2500 + $0.582
10000 + $0.559
