ON SEMICONDUCTOR  MC7918CTG  Fixed LDO Voltage Regulator, 7918, -35V to -21V, 1.3V Dropout, -18Vout, 1Aout, TO-220-3

ON SEMICONDUCTOR MC7918CTG
ON SEMICONDUCTOR MC7918CTG
ON SEMICONDUCTOR MC7918CTG
Manufacturer Part No:
MC7918CTG
Newark Part No.:
45J1472
Technical Datasheet:
See all Technical Docs
ON SEMICONDUCTOR MC7918CTG
ON SEMICONDUCTOR MC7918CTG
ON SEMICONDUCTOR MC7918CTG

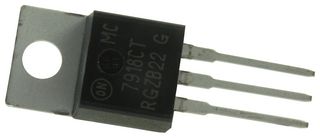

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The MC7918CTG is a -18V fixed output negative Linear Regulator. The device features current limiting, thermal shutdown and safe-area compensation making them remarkably rugged under most operating conditions. With adequate heatsinking the device can deliver output currents in excess of 1A.
  • No external components required
  • Internal thermal overload protection
  • Internal short circuit current limiting
  • Output transistor safe-area compensation
  • 4% Output voltage tolerance

Product Information

Output Type:
Fixed
Input Voltage Min:
-35V
Output Voltage Min:
Input Voltage Max:
-27V
Output Voltage Max:
Fixed Output Voltage Nom.:
-18V
Adjustable Output Voltage Min:
-
Adjustable Output Voltage Max:
-
Output Current:
1A
Dropout Voltage Vdo:
1.3V
LDO Regulator Case Style:
TO-220
No. of Pins:
3Pins
Operating Temperature Min:
0°C
Operating Temperature Max:
125°C
Packaging:
Each
Product Range:
-18V 1A LDO Voltage Regulators
Automotive Qualifications Standard:
-
MSL:
-
SVHC:
No SVHC (20-Jun-2016)

Find similar products  grouped by common attribute

Applications

  • Industrial;
  • Power Management

Legislation and Environmental

RoHS Compliant:
Yes
