SCHURTER  3403.0176.11  Fuse, Surface Mount, UMT 250 Series, 10 A, 250 VAC, 125 VDC, Time Delay, SMD

SCHURTER 3403.0176.11
Technical Data Sheet (338.68KB) EN See all Technical Docs

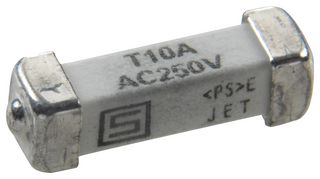

Image is for illustrative purposes only. Please refer to product description.

Product Information

Product Range:
UMT 250 Series
Fuse Current:
10A
Voltage Rating VAC:
250VAC
Voltage Rating VDC:
125VDC
Blow Characteristic:
Time Delay
Fuse Case Style:
SMD
Breaking Capacity Current AC:
35A
Breaking Capacity Current DC:
35A
Breaking Capacity:
35A @ 250V AC, 35A @ 125V DC, 200A @ 63V AC / DC
SVHC:
No SVHC (20-Jun-2016)

Find similar products  grouped by common attribute

Legislation and Environmental

RoHS Compliant:
Yes
