257-101
Binding Post, 30 A, Gold Plated Contacts, Panel Mount, White

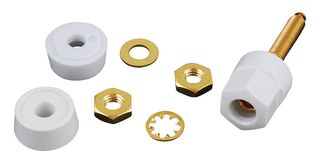

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 7 week(s)
Product Information
ManufacturerABBATRON HH SMITH
Manufacturer Part No257-101
Newark Part No.28F1232
Technical Datasheet
Product Range-
Current Rating30A
Voltage Rating-
Contact PlatingGold Plated Contacts
Connector MountingPanel Mount
Connector ColourWhite
Contact MaterialBrass
SVHCNo SVHC (25-Jun-2020)
Product Overview
The 257-101 is a 30A white panel-mount Insulated Binding Post made of gold-plated brass body with contacts. Post head is moulded from Lexan polycarbonate and hex cap. Insulated washers are moulded polycarbonate and completely insulate post from panel keyed to panel and body to prevent rotation. It connects with 0.08-inch phone tip plug, 1/4-inch spade lug, standard banana plug, alligator clip or wire (to #14). It is used to connect circuit, wrap wire around solder turret to attach to solder lug between the nuts.
- Captivated to prevent loss
Applications
Industrial
Technical Specifications
Product Range
-
Voltage Rating
-
Connector Mounting
Panel Mount
Contact Material
Brass
Current Rating
30A
Contact Plating
Gold Plated Contacts
Connector Colour
White
SVHC
No SVHC (25-Jun-2020)
Technical Docs (2)
Alternatives for 257-101
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2020)
