ND Series Piezo Transducer Elements

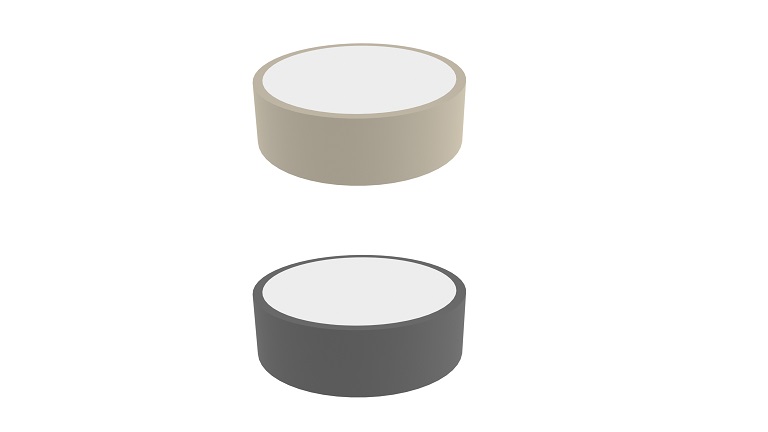

KEMET ND disc shape piezoelectric transducers

KEMET's piezoelectric ceramics ND series are discshaped piezoceramics that use original high performance piezoelectric materials. These products are based on the principle of the piezoelectric effect that generates a charge in response to pressure and an inverse piezoelectric effect that generates strain in response to voltage.

  • N6 material has a high coupling coefficient, high Qm, & low tanδ, suitable for high power applications
  • N21 material has a high coupling coefficient & a large g-constant, suitable for sensing applications
  • Operating temperature range from −20°C to +60°C
  • RoHS/REACH compliant
  • Ceramic Outer Diameter: 10 = φ10 mm, 18 = φ18 mm
  • Thickness Dimension: X2 = 2 mm, X3= 3 mm
  • Ceramic Material Name: N6 = N6 material, N21 = N21 material
  • Applications: Ultrasonic cleaning, Levitation, Flow/level meter, Distance sensor, Load/impact sensor
Show More
Filter Layout:
Filter Applied
Product Range
= ND Series
1 Filter(s) Selected
8 Products Found Please click the 'Apply Filters' button to update results
Keep applying filters or Show Results Show Results
Apply Filters Clear All Filters
Clear All Filters
Min/Max Availability

When the Remember checkbox is selected we will save your latest filter preferences for future searches
Compliance
Min/Max Element Type
Reset
Min/Max Resonant Frequency
Reset
Min/Max Capacitance
Reset
Min/Max External Diameter
Reset
Min/Max External Height
Reset
Min/Max Product Range
Reset
Packaging
Reset

Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.

Open Filters
Find a huge range of ND Series Piezo Transducer Elements at Newark. We stock a wide range of Piezo Transducer Elements, such as -999 , ND Series , 7BB Series , ABT Piezo Transducer Elements from the worlds top manufacturers: KEMET & more.
Filter Applied
Product Range
= ND Series

Compare Selected Compare (0)
Sort by
  Manufacturer Part No Newark Part No. Description / Manufacturer
Availability Price for:
Price
Quantity
 Element Type Resonant Frequency Capacitance External Diameter External Height Product Range


 Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending
ND10X2N21
ND10X2N21 - Transducer, Piezo, 590 pF, 196 kHz, 0.394

68AK1931

Data Sheet
+
RoHS
Date/Lot Code

Transducer, Piezo, 590 pF, 196 kHz, 0.394" Dia x 0.079" H

KEMET

You previously purchased this product. View in Order History

Each

1+ $38.75 5+ $38.75 10+ $38.75 25+ $38.75 50+ $38.75

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Piezo 196kHz 590pF 10mm 2mm ND Series
ND10X2N6
ND10X2N6 - Transducer, Piezo, 480 pF, 216 kHz, 0.394

68AK1932

Data Sheet
+
RoHS
Date/Lot Code

Transducer, Piezo, 480 pF, 216 kHz, 0.394" Dia x 0.079" H

KEMET

You previously purchased this product. View in Order History

Each

1+ $38.75 5+ $38.75 10+ $38.75 25+ $38.75 50+ $38.75

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Piezo 216kHz 480pF 10mm 2mm ND Series
ND10X3N21
ND10X3N21 - Transducer, Piezo, 400 pF, 190 kHz, 0.394

68AK1933

Data Sheet
+
RoHS
Date/Lot Code

Transducer, Piezo, 400 pF, 190 kHz, 0.394" Dia x 0.118" H

KEMET

You previously purchased this product. View in Order History

Each

1+ $44.29 5+ $44.29 10+ $44.29 25+ $44.29 50+ $44.29

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Piezo 190kHz 400pF 10mm 3mm ND Series
ND10X3N6
ND10X3N6 - Transducer, Piezo, 320 pF, 207 kHz, 0.394

68AK1934

Data Sheet
+
RoHS
Date/Lot Code

Transducer, Piezo, 320 pF, 207 kHz, 0.394" Dia x 0.118" H

KEMET

You previously purchased this product. View in Order History

Each

1+ $44.29 5+ $44.29 10+ $44.29 25+ $44.29 50+ $44.29

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Piezo 207kHz 320pF 10mm 3mm ND Series
ND18X2N21
ND18X2N21 - Transducer, Piezo, 2000 pF, 109 kHz, 0.709

68AK1935

Data Sheet
+
RoHS
Date/Lot Code

Transducer, Piezo, 2000 pF, 109 kHz, 0.709" Dia x 0.079" H

KEMET

You previously purchased this product. View in Order History

Each

1+ $49.74 5+ $49.74 10+ $49.74 25+ $49.74 50+ $49.74

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Piezo 109kHz 2000pF 18mm 2mm ND Series
ND18X2N6
ND18X2N6 - Transducer, Piezo, 1610 pF, 120 kHz, 0.709

68AK1936

Data Sheet
+
RoHS
Date/Lot Code

Transducer, Piezo, 1610 pF, 120 kHz, 0.709" Dia x 0.079" H

KEMET

You previously purchased this product. View in Order History

Each

1+ $49.74 5+ $49.74 10+ $49.74 25+ $49.74 50+ $49.74

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Piezo 120kHz 1610pF 18mm 2mm ND Series
ND18X3N6
ND18X3N6 - Transducer, Piezo, 1080 pF, 120 kHz, 0.709

68AK1938

Data Sheet
+
RoHS
Date/Lot Code

Transducer, Piezo, 1080 pF, 120 kHz, 0.709" Dia x 0.118" H

KEMET

You previously purchased this product. View in Order History

Each

1+ $56.96 5+ $56.96 10+ $56.96 25+ $56.96 50+ $56.96

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Piezo 120kHz 1080pF 18mm 3mm ND Series
ND18X3N21
ND18X3N21 - Transducer, Piezo, 1370 pF, 109 kHz, 0.709

68AK1937

Data Sheet
+
RoHS
Date/Lot Code

Transducer, Piezo, 1370 pF, 109 kHz, 0.709" Dia x 0.118" H

KEMET

You previously purchased this product. View in Order History

Each

1+ $56.96 5+ $56.96 10+ $56.96 25+ $56.96 50+ $56.96

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Piezo 109kHz 1370pF 18mm 3mm ND Series
