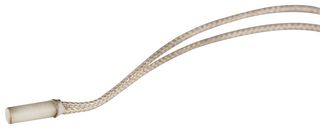

HONEYWELL HEL-707-U-1-12-00

RTD Sensor, Platinum, -75 °C, 540 °C, 1 kohm, HEL-700 Series

HONEYWELL HEL-707-U-1-12-00
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
HONEYWELL HONEYWELL
Manufacturer Part No:
HEL-707-U-1-12-00
Newark Part No.:
15M0246
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
HEL-700 Series
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (HEL-700 Series)

See all from this product range

Product Overview

The HEL-707-U-1-12-00 is a 2-wire thin film platinum RTD designed to monitor or control critical temperatures in industrial applications. It provides a linear change in resistance versus temperature, combining high linearity, stability, accuracy and wide temperature range. These fully-assembled elements are ready-to-use in probe assemblies without the need for fragile splices to extension leads. This product is manufactured using a thin layer of platinum deposited on an alumina substrate and is laser trimmed to a resistance interchangeability of a standard ±0.2% or optional ±0.1%. The sensor chip is then glassed, wired and potted or ceramic fired to result in a cylindrical alumina package with either TFE PTFE or fiberglass-insulated lead wires.
  • Wide temperature range
  • Interchangeable
  • Accurate
  • Linear resistance vs. temperature
  • Fast response
  • Laser trimmed
  • Ready-to-use, fully assembled elements

Applications

Sensing & Instrumentation, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
-75°C

:
540°C

:
1kohm

:
HEL-700 Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (4)

0 In stock
