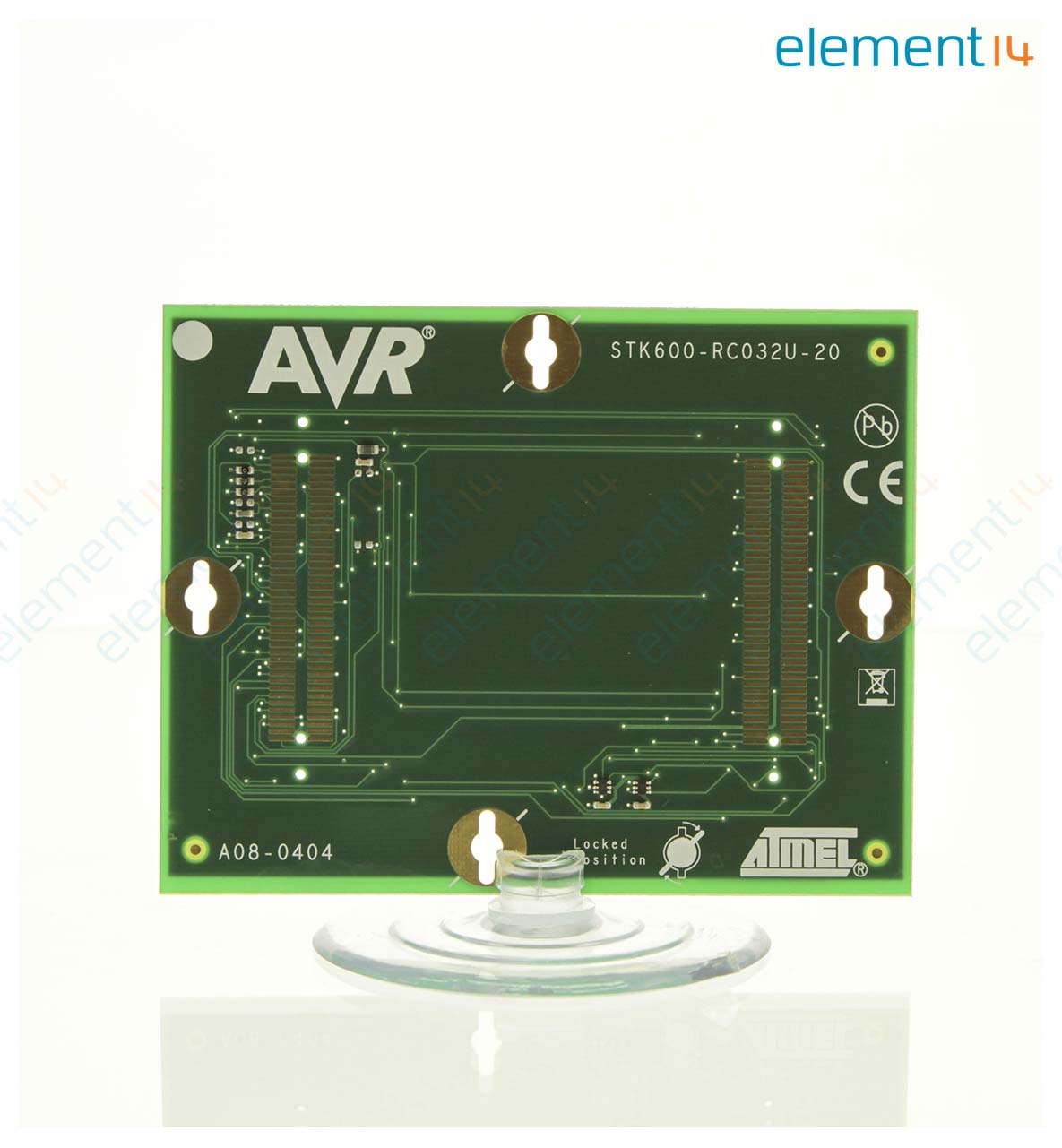

Routing Card for 32 pin megaAVR in TQFP Socket, Microchip STK6000 Starter Kit, Low Cost Solution


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Newark Part No.:
Product Range
megaAVR Series
Technical Datasheet:
ATSTK600-RC20   Datasheet
Supply Frame Models Link
See all Technical Docs

Product Range Selector (megaAVR Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×






STK600 Starter Kit and Development System


megaAVR Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Product Overview

ATSTK600-RC20 is a Routing card for the 32 pin megaAVR in TQFP socket supplements the STK6000 Starter Kit. The AVR device connects to the STK600 using an innovative routing and socket card sandwich system which routes the signals from the device to the appropriate hardware. The routing cards sit between the generic socket card and the STK600. The routing system is purely passive. No electronic components route the signals. So all I/O pins are directly accessible on the connectors with no altering of the electrical behaviour. The routing card design provides a low cost solution to support upcoming devices as the socket is the cost driving factor. The routing card has one pair of electric pads underneath to mate with the STK600 spring loaded connector and in addition with one pair of pads on top where the socket card connector connects.
  • Routing card for the 32 pin megaAVR in TQFP socket supplements the STK6000 Starter Kit
  • Low cost solution
  • Supplements STK600
  • Supports for devices like AT90USB162, AT90USB82, ATmega16U2, ATmega32U2, ATmega8U2 MCU's
  • Require socket card and a STK600 motherboard to support the selected device

0 In stock

Non-Cancelable / Non Returnable

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice


Pricing is unavailable. Please contact customer services.

Price for:
Multiple: 1 Minimum: 8
  • 1+
Quantity Price Your Price
1+ $22.59
