TWR-K60F120M-KIT

Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform

TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
TWR-K60F120M-KIT - Tower Controller Module, For Kinetis K60 Family MCU's, Stand Alone, Low Cost Platform
Video
Video

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NXP NXP
Manufacturer Part No:
TWR-K60F120M-KIT
Newark Part No.:
73T5792
Technical Datasheet:
TWR-K60F120M-KIT   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
NXP

:
32bit

:
Kinetis - K60

:
ARM

:
Cortex-M4

:
MK

:
Tower System Elevator Module and Serial Module

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (9)

Product Overview

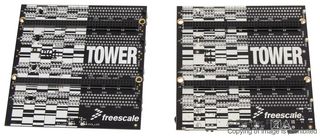

The TWR-K60F120M-KIT is a tower controller module compatible with the NXP tower system. It can function as a stand alone, low cost platform for the evaluation of the Kinetis K60 family of microcontroller (MCU) devices. The tower controller module is populated with a device rated for 120MHz operation across the full -40C to 85C temperature range. At room temperatures the board can be over clocked to 150 MHz to allow for evaluation of the K10, K20, and K60 devices that are rated for 150MHz operation across the full temperature range. The tower controller module can also be combined with other NXP tower peripheral modules to create development platforms for a wide variety of applications.
  • K60FN1M in a 144 LQFP with 120 MHz operation
  • S08JM60 based open source BDM (OSBDM) circuit
  • 2Gb of SLC NAND flash memory
  • Four user controlled status LEDs
  • Four capacitive touch pads and two mechanical push buttons
  • Socket for capacitive touch pad daughter board (Touch TWRPI)
  • Socket for tower plugin (TWRPI, e.g. sensor board)
  • Battery holder for 20mm lithium battery (e.g. 2032, 2025)
  • Three axis digital accelerometer (MMA8451Q)
  • SD Card slot

Applications

Industrial, Consumer Electronics, Building Automation, Metering, Portable Devices

Contents

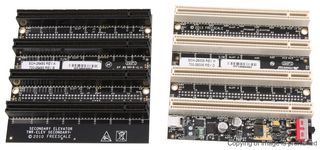

TWR-K60F120M MCU module, TWR-ELEV (Primary and Secondary Elevator Modules), TWR-SER(Serial module including USB host/device/OTG, Ethernet, CAN, RS232 and RS485).
