Miniature SMT sensor connectors

Omega PCC-SMD series

SMT miniature PCC-SMD Series connectors are perfect for bringing thermocouple, RTD, or thermistor temperature measurement to your production printed circuit boards in an automated way.

  • Surface mount device can be soldered directly to Printed Circuit Boards
  • Produced on a reel for use with pick-and-place machines
  • Used in pairs for miniature 2-pin thermocouple connectors
  • 1 contact per pin connection (great for use with RTD’s and Thermistors)
  • Universal calibration, great accuracy when paired with integrated cold junction compensation
  • Nickel-plated Beryllium Copper, -50 to 120°C
  • (-58-248°F) ambient operating temp range (higher with high-temp PCB)

PCC SMD diagram

Learn more about how Omega’s PCC-SMD unique features make integration of cold junction compensation easier than it has ever been before.

Read more

Featured products

Thermocouple Connector, RTD Receptacle

Shop now

Applicable industries

semiconductor

Semiconductor

Manufacturing

Manufacturing

Life Sciences

Life sciences

Food Beverage

Food & beverage

Environmental

Environmental

Electronics

Electronics

Calibration

Calibration

Transportation

Transportation

Compatible temperature sensors

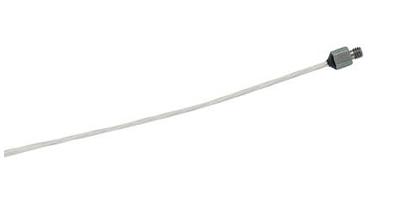

Bolt-On RTD Sensors with Threaded SS Housing

Designed for installation in #8-32 threaded holes or in thin items using a backing nut. Its small size allows for installation in tight spaces. The 100 Ohm Class A DIN platinum element is connected to 1 meter of 3-wire PFA Insulated & jacketed cable and a 3-pin miniature connector.

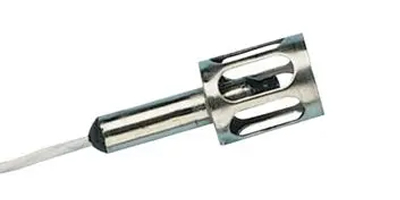

-50°C to 230°C RTD Air Temperature Sensors with Cages

The platinum thin film RTD sensing element is exposed to air flow while being protected from passing debris by a vented housing. This construction uses a #26 AWG stranded nickel-plated copper, PFA insulated lead wire. This design comes standard with a removable miniature three pin connector.

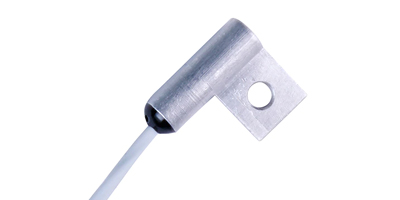

Bolt-On RTD Sensor with Aluminum Flag Housing

3-wire RTD sensor features an improved barrel and flag design on the aluminum housing which gives improved durability. The flag is machined to accept a #3, #4, #5, #6, #8 screw for easy installation on flat surfaces by either being bolted or cemented onto the surface.

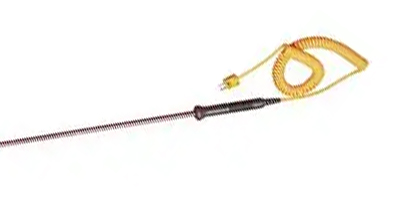

Handheld Thermocouple Probes with Retractable Cable

Handle is permanently molded to 0.187-inch diameter probe sheath. Includes cable and miniature connector. A multi-use, low cost, versatile thermocuple which can be used with any handheld. Available off the shelf in many configurations.

Handheld Thermocouple Probes with Retractable Cable

Handle is permanently molded to 0.125-inch diameter probe sheath. Includes cable and miniature connector. A multi-use, low cost, versatile thermocuple which can be used with any handheld. Available off the shelf in many configurations.

Handheld Thermocouple Probes with Retractable Cable

Handle is permanently molded to 0.062-inch diameter probe sheath. Includes cable and miniature connector. A multi-use, low cost, versatile thermocuple which can be used with any handheld. Available off the shelf in many configurations.
