AFG2021

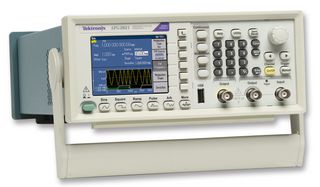

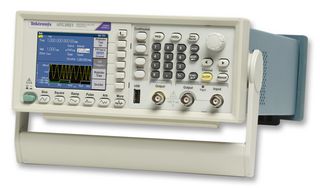

Function Generator, Arbitrary, 1 Channel, 20 MHz, AFG-2000 Series

AFG2021 - Function Generator, Arbitrary, 1 Channel, 20 MHz, AFG-2000 Series
AFG2021 - Function Generator, Arbitrary, 1 Channel, 20 MHz, AFG-2000 Series
AFG2021 - Function Generator, Arbitrary, 1 Channel, 20 MHz, AFG-2000 Series
AFG2021 - Function Generator, Arbitrary, 1 Channel, 20 MHz, AFG-2000 Series
AFG2021 - Function Generator, Arbitrary, 1 Channel, 20 MHz, AFG-2000 Series
AFG2021 - Function Generator, Arbitrary, 1 Channel, 20 MHz, AFG-2000 Series
Video
Video
Video
360°

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
TEKTRONIX TEKTRONIX
Manufacturer Part No:
AFG2021
Newark Part No.:
05W5104
Product Range
AFG-2000 Series
Technical Datasheet:
AFG2021   Datasheet
See all Technical Docs

Product Range Selector (AFG-2000 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Arbitrary, Function

:
1 Channel

:
AFG-2000 Series

:
20MHz

:
AM, FM, FSK, PM, PWM

:
3 Years

:
US

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (6)

Product Overview

Features include a new 3.5 inch colour TFT screen shows relevant parameters in text and graphic formats. 2U height and half-rack width form factor enables the AFG2000 to be stacked on other bench instruments including digital multimeters, power supplies, and frequency counters saving valuable bench space.
  • 0 MHz sine, 10 MHz square and pulse waveforms provide coverage for your most common applications
  • 250 MS/s sampling rate and 14-bit vertical resolution enable the creation of high-fidelity signals
  • The innovative UI reduces setup and evaluation time with direct access to frequently used functions
  • 4 × 128 kS memory and the USB memory expansion capability
  • USB remote control port and USB flash drive port
  • Built-in Modulation, Noise Generator, Burst, and Sweep modes for greater versatility
  • Built-in waveforms provide quick access to commonly used signals
  • Large 3.5 inch colour screen displays both graphical and numeric waveform information simultaneously
  • Menu and online help in 8 languages
  • 2U height and half-rack width fits both benchtop and rack-mounted
  • Free ArbExpress software makes waveform editing and downloading extremely easy
  • Free SignalExpress software

Applications

Test & Measurement, Maintenance & Repair

Contents

User's Manual, Power Cord, USB Cable, CD-ROM with Programmer manual and service manual, CD-ROM with NI Labview Signal Express and IVI Drivers, CD-ROM with ArbExpress Software, and NIST-Traceable Calibration Certificate

Footnotes

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Best Seller

3 In stock Need more?

Order before 5.45pm EST standard shipping

Same day shipping

$2,446.40
