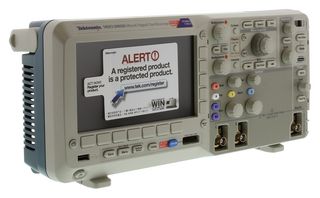

MSO2002B

MSO / MDO Oscilloscope, MSO2000B Series, 2+16 Channel, 70 MHz, 1 GSPS, 1 Mpts, 5 ns

MSO2002B - MSO / MDO Oscilloscope, MSO2000B Series, 2+16 Channel, 70 MHz, 1 GSPS, 1 Mpts, 5 ns
MSO2002B - MSO / MDO Oscilloscope, MSO2000B Series, 2+16 Channel, 70 MHz, 1 GSPS, 1 Mpts, 5 ns
MSO2002B - MSO / MDO Oscilloscope, MSO2000B Series, 2+16 Channel, 70 MHz, 1 GSPS, 1 Mpts, 5 ns
MSO2002B - MSO / MDO Oscilloscope, MSO2000B Series, 2+16 Channel, 70 MHz, 1 GSPS, 1 Mpts, 5 ns
Video
Video
Video
360°

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
TEKTRONIX TEKTRONIX
Manufacturer Part No:
MSO2002B
Newark Part No.:
28W4950
Product Range
MSO2000B Series
Technical Datasheet:
MSO2002B   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
MSO2000B Series

:
2+16 Channel

:
70MHz

:
1GSPS

:
1 Mpts

:
5ns

:
TFT LCD Colour

:
One TPP0100 100MHz Passive Probe Per Channel (10:1), One P6316 16-Channel Logic Probe, OpenChoice Desktop Software, Calibration Certificate, Quick Reference Manual & Documentation on CD, Power Cord

:
5 Years

:
US

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (7)

Product Overview

Offering up to 70 MHz bandwidth and 1 GS/s sample rate, the DPO2002B Mixed Signal Oscilloscope delivers advanced debug features at an entry-level price. With up to 20 channels for analyzing analogue and digital signals, you can quickly find and diagnose problems in complex designs. To capture the long windows of signal activity while maintaining fine timing resolution, the DPO2002B offers a deep record length of 1 Mpoints standard on all channels. And with Wave Inspector® controls for rapid waveform navigation and automated serial and parallel bus analysis, the MSO/DPO2000B Oscilloscope Series from Tektronix provides the feature-rich tools you need to simplify and speed debug of your complex design.
  • 1 GS/s Sample Rate on All Channels
  • 1 Megapoint Record Length on All Channels
  • 5,000 wfm/s Maximum Waveform Capture Rate
  • Suite of Advanced Triggers
  • 7 in. (180 mm) Widescreen TFT-LCD Colour Display

Applications

Maintenance & Repair, Test & Measurement
