EK-Z7-ZC702-G
Evaluation Kit, XC7Z020 CLG484 -1 AP SoC, Vivado® Design Suite, FPGA Mezzanine Card Interface
- Manufacturer:
- AMD XILINX AMD XILINX
- Manufacturer Part No:
- EK-Z7-ZC702-G
- Newark Part No.:
- 32AC9665
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Xilinx
- :
- 32bit
- :
- Zynq-7000
- :
- ARM
- :
- Cortex-A9
- :
- XC7Z020-CLG484-1
- :
- Eval Board XC7Z020-CLG484-1, AMS 101, S/W, Documentation, Power/USB/Ethernet/HDMI Cable
- :
- -
Technical Documents (1)
Product Overview
The EK-Z7-ZC702-G from Xilinx is a Zynq®-7000 all programmable SoC ZC702 evaluation kit. This kit includes all the basic components of hardware, design tools, IP and pre-verified reference designs including a targeted design, enabling a complete embedded processing platform. The included pre-verified reference designs and industry standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards. It is optimized for quickly prototyping embedded applications using Zynq-7000 SoCs, demonstrates a embedded design, targeting video pipeline.
- Hardware, design tools, IP and pre-verified reference designs
- Advanced memory interface with 1GB DDR3 component memory
- Enabling serial connectivity with USB OTG, UART, IIC, CAN bus
- Supports embedded processing with dual ARM cortex-A9 core processors
- Develop networking applications with 10-100-1000Mbps Ethernet (GMII, RGMII and SGMII)
- Implement video display applications with HDMI out
- Expand I/O with the FPGA Mezzanine Card (FMC) interface
Applications
Embedded Design & Development
Contents

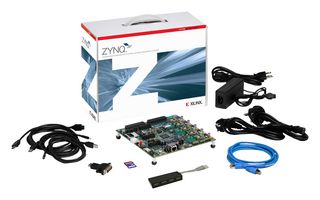

ZC702 evaluation board featuring the XC7Z020 CLG484 -1 AP SoC, Full seat Vivado® Design Suite: Design Edition (Node locked & Device-locked to the Zynq-7000 XC7Z020 SoC with 1 year of updates and support), AMS 101 evaluation board, Printed quick start guide, Targeted reference design showcases various embedded domain features and capabilities with a Linux-based video pipeline design, Board design files (DxDesigner 2005, Allegro 16.3 - 16.5), Cables and power supply.
Footnotes
Please note this product is Non-Cancellable and Non-Returnable (NCNR)
Warnings
Warranty Information: Xilinx development boards, kits and programming cables have a warranty of ninety (90) days from date of purchase.
Best Seller
0 In stock
Non-Cancelable / Non Returnable
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$1,966.63
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | $1,966.63 | |
