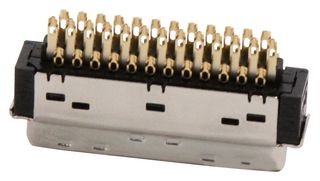

                      10150-3000PE

                      D Sub Connector, 50 Contacts, Plug, Solder Cup, MDR 101 Series, Steel Body

                      Date/Lot Code

                      3M 10150-3000PE
                      3M 10150-3000PE
                      3M 10150-3000PE
                      3M 10150-3000PE
                      Image is for illustrative purposes only. Please refer to product description.
                      Manufacturer3M
                      Manufacturer Part No10150-3000PE
                      Newark Part No.93K6327
                      Product RangeMDR 101 Series
                      Also Known AsGTIN UPC EAN: 04548623744964 JE150430005
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      117 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      QuantityPrice
                      1+$15.110
                      10+$15.110
                      25+$15.110
                      50+$13.950
                      100+$13.950
                      250+$13.940
                      500+$13.940
                      1000+$12.950
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $15.11
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      Manufacturer3M
                      Manufacturer Part No10150-3000PE
                      Newark Part No.93K6327
                      Product RangeMDR 101 Series
                      Also Known AsGTIN UPC EAN: 04548623744964 JE150430005
                      Technical Datasheet

                      Data Sheet

                      D Sub Connector TypeMini D (Ribbon Connector)
                      GenderPlug(View Associated Connectors)
                      Product RangeMDR 101 Series
                      No. of Contacts50Contacts
                      D Sub Shell Size-
                      Contact Termination TypeSolder Cup
                      Connector MountingCable Mount
                      Contact MaterialCopper Alloy
                      Contact PlatingNickel Plated Contacts
                      Connector Body MaterialSteel Body
                      SVHCTo Be Advised

                      Product Overview

                      The 10150-3000PE from 3M is a mini D ribbon (MDR) shielded wire mount plug connector with 50 positions. This connector accepts a wide variety of discrete wire (24AWG to 30AWG) cable construction.

                      • Wiper on wiper contact for reliable repetitive plugging
                      • Solder cup termination requires no special tooling
                      • UL94 V-0 rated black colour glass reinforced polyester insulation
                      • Copper alloy contacts with 80μinch (2μm) nickel under plating
                      • 20μinch (0.5μm) minimum gold wiping interface
                      • Gold flash over nickel solder tail plating (RIA E1 & C1 apply)
                      • Gold flash solder cup and steel shroud with nickel plating
                      • Current rating of 1A
                      • High temperature rating from -55°C to 105°C
                      • Withstand voltage of 500Vrms for 1 minute

                      Applications

                      Industrial

                      Technical Specifications

                      D Sub Connector Type

                      Mini D (Ribbon Connector)

                      Product Range

                      MDR 101 Series

                      D Sub Shell Size

                      -

                      Connector Mounting

                      Cable Mount

                      Contact Plating

                      Nickel Plated Contacts

                      SVHC

                      To Be Advised

                      Gender

                      Plug

                      No. of Contacts

                      50Contacts

                      Contact Termination Type

                      Solder Cup

                      Contact Material

                      Copper Alloy

                      Connector Body Material

                      Steel Body

                      Technical Docs (2)

                      Technical Data Sheet EN

                      3D Product Image EN

                      Associated Products

                      8 Products Found

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:To Be Advised
                      Download Product Compliance Certificate

                      Product Compliance Certificate
