MS3476L-14-19P

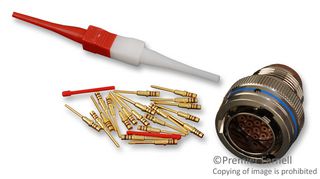

The MS3476L-14-19P is a 19-position military standard Bayonet Coupling Connector with pin type crimp rear insertable and rear releasable contacts. The straight plug has aluminum shell with electroless nickel finish and 14-19 fluid-resistant insert. Insertion of contacts from the rear of the connector assures no damage to the front that might affect the sealing characteristics. Utilizes same standard qualified rear-release type plastic tool for contact insertion. Grommets are constructed of tear-resistant elastomer and experience no degradation when exposed to a broad range of fluids. Sealing over a range of wire diameters is assured by a triple webbed grommet at the rear of the connector.

• Medium size and environment-resistant connector
• Recommended operating voltage to 1000VAC RMS at sea level
• Quick positive coupling assured by 3-point bayonet coupling system
• Visual confirmation of complete coupling
• Eliminates mismating by the use of five key/keyway design
• 500 Mating cycles minimum durability

Applications

Defence, Military & Aerospace, Sensing & Instrumentation, Automation & Process Control, Test & Measurement
