Plug in Module, Full-speed USB Demonstration & Development Board

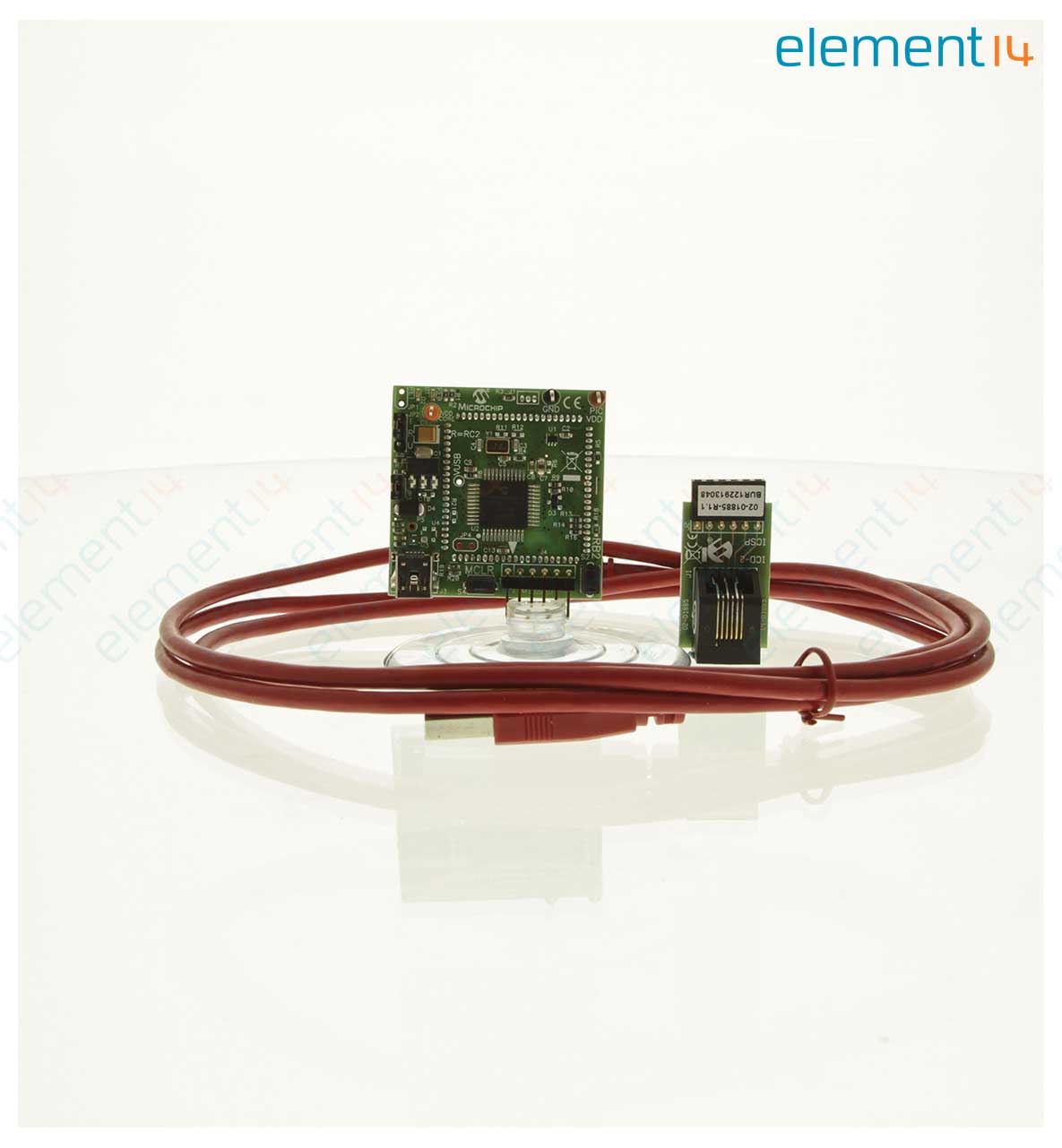

Image is for illustrative purposes only. Please refer to product description.
Available to Order
| Quantity | Price |
|---|---|
| 1+ | $124.270 |
Price for:Each
Minimum: 2
Multiple: 1
$248.54
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoMA180029
Newark Part No.85R1715
Silicon ManufacturerMicrochip
Core ArchitecturePIC
Core Sub-ArchitecturePIC18
Silicon Core NumberPIC18F47J53 FS
Silicon Family NamePIC18FxxJxx
For Use WithUSB
Kit ContentsPIC18F4XJ5X Full Speed USB Demonstration Board, Mini USB Cable, CD ROM
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The PIC18F47J53 FS USB PIM Demo Board is a full-speed USB demonstration and development board featuring the PIC18F47J53 with XLP low power. The board can be operated either standalone or as a Plug-In Module (PIM) plugged into the PIC18 Explorer Board.
- Two miniature SMT red LEDs
- 12MHz SMT crystal which can be used with internal PLL to run the microcontroller and USB module
- MCP9701A Analogue output temperature sensor
- General purpose push button S2 connected through with a pull-up resistor
- Six-pin, right-angle in-circuit serial programming (ICSP ) programmer/debug header
- Jumpers for current measurement (JP3) and configuration (JP2)
- A mini-B USB connector for power and communication
- Full-speed (12 Mbps) and low-speed (1.5 Mbps) operation
- Support of control, interrupt, bulk and isochronous transfers
- Support of up to 32 endpoints, 3.8Kbytes of dual access RAM for USB or general purpose use
Applications
Embedded Design & Development, Industrial, Medical, Automotive, Communications & Networking
Contents
PIC18F4XJ5X full-speed USB demonstration-board, standard USB A to mini-B cable, six-pin, in-line ICSP to RJ-11 programming adapter board, PICDEM starter kit CD-ROM, containing USB firmware projects..Etc
