173107-0058

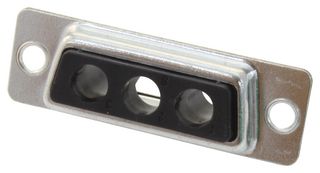

Combination Layout D Sub Connector, 173107 Series, DA-3W3, Receptacle, 3 Contacts, Solder
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No173107-0058
Newark Part No.01AH0327
Product Range173107 Series
Also Known AsF3W3SC-K121
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $0.550 |
| 10+ | $0.550 |
| 25+ | $0.550 |
| 50+ | $0.550 |
| 100+ | $0.550 |
| 250+ | $0.550 |
| 500+ | $0.550 |
| 1000+ | $0.550 |
Price for:Each
Minimum: 1
Multiple: 1
$0.55
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No173107-0058
Newark Part No.01AH0327
Product Range173107 Series
Also Known AsF3W3SC-K121
No. of Positions3Positions
Product Range173107 Series
Insert ArrangementDA-3W3
GenderSocket
Connector Shell Size-
No. of Signal Contacts0Contacts
No. of Contacts3Contacts
Contact Type-
No. of Power Positions3
Contact Termination TypeSolder
For Use WithMolex 173107 Series FCT Coaxial, High Power, High Voltage, or Pneumatic Contacts
Connector MountingPanel Mount
D Sub Shell SizeDA
Connector Body MaterialSteel Body
Contact Material-
Contact Plating-
SVHCNo SVHC (21-Jan-2025)
Product Overview
173107-0058 is a 173107 series shielded FCT mixed layout D-Sub female housing. Mates with FCT mixed layout D-Sub, size 2, 3W3C, plug. Use with FCT coaxial, high power, high voltage or pneumatic contacts.
- Single row and 3 circuits (maximum)
- Black PBT resin
- Steel shell material
- Polarized to mating part
- Tin shell plating
- IP20 waterproof / dustproof
- Operating temperature range from -55° to +130°C
Technical Specifications
No. of Positions
3Positions
Insert Arrangement
DA-3W3
Connector Shell Size
-
No. of Contacts
3Contacts
No. of Power Positions
3
For Use With
Molex 173107 Series FCT Coaxial, High Power, High Voltage, or Pneumatic Contacts
D Sub Shell Size
DA
Contact Material
-
SVHC
No SVHC (21-Jan-2025)
Product Range
173107 Series
Gender
Socket
No. of Signal Contacts
0Contacts
Contact Type
-
Contact Termination Type
Solder
Connector Mounting
Panel Mount
Connector Body Material
Steel Body
Contact Plating
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (21-Jan-2025)
