M32JM-00000E-010BG

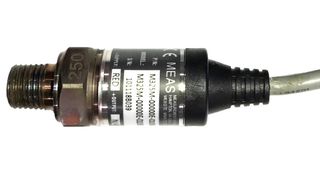

PRESSURE TRANSDUCER, 10BAR, GAUGE, 1/4" ROHS COMPLIANT: YES
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part NoM32JM-00000E-010BG
Newark Part No.32AJ8361
Product RangeM3200 Series
33 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $190.040 |
| 5+ | $167.050 |
| 10+ | $158.310 |
| 25+ | $147.710 |
| 50+ | $142.590 |
| 100+ | $140.190 |
Price for:Each
Minimum: 1
Multiple: 1
$190.04
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part NoM32JM-00000E-010BG
Newark Part No.32AJ8361
Product RangeM3200 Series
Pressure TypeGauge
Pressure Port TypeBSPT
Operating Pressure Min-
Operating Pressure Max10bar
Pressure Port Size1/4"
Transducer Connection / TerminationCable
Supply Voltage Min2.7V
Supply Voltage Max5V
Media TypeGas, Liquid
Output Interface-
Sensor Output TypeAnalogue
Housing MaterialStainless Steel
Operating Temperature Min-20°C
Operating Temperature Max85°C
Product RangeM3200 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Pressure Type
Gauge
Operating Pressure Min
-
Pressure Port Size
1/4"
Supply Voltage Min
2.7V
Media Type
Gas, Liquid
Sensor Output Type
Analogue
Operating Temperature Min
-20°C
Product Range
M3200 Series
Pressure Port Type
BSPT
Operating Pressure Max
10bar
Transducer Connection / Termination
Cable
Supply Voltage Max
5V
Output Interface
-
Housing Material
Stainless Steel
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
