216-7383-55-1902

IC & Component Socket, 16 Contacts, SOIC Socket, 2.54 mm, 216-7383 Series, 3.81 mm

216-7383-55-1902 - IC & Component Socket, 16 Contacts, SOIC Socket, 2.54 mm, 216-7383 Series, 3.81 mm
216-7383-55-1902 - IC & Component Socket, 16 Contacts, SOIC Socket, 2.54 mm, 216-7383 Series, 3.81 mm

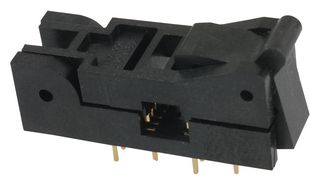

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
3M 3M
Manufacturer Part No:
216-7383-55-1902
Newark Part No.:
85K7801
Product Range
216-7383 Series
Also Known As:
GTIN UPC EAN: 00051138696207 JE150900858
Technical Datasheet:
216-7383-55-1902   Datasheet
See all Technical Docs

Product Overview

The 216-7383-55-1902 is a 16-lead test and burn-in SOIC Socket is made of glass-filled polyethersulfone. The socket lid is actuated from top or front and is compatible with automated load/unload equipment. It socket compact envelope and side to side stack-ability maximize board density.
  • Tweezer slot for easy manual loading/unloading
  • Lid applies 80grams normal force per lead for maximum electrical reliability
  • Accepts gull wing JEDEC device sizes in 0.15 and 0.3" body widths
  • 1A Current rating
  • >1 x 10¹²Ω at 500VDC Insulation resistance
  • UL94V-0 Flammability rating
  • -55 to 150°C Operating temperature range

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
16Contacts

:
SOIC Socket

:
2.54mm

:
216-7383 Series

:
3.81mm

:
Beryllium Copper

:
Gold Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Also Known As

GTIN UPC EAN: 00051138696207 JE150900858

0 In stock

Non-Cancelable / Non Returnable

$41.47

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 10 Minimum: 20
