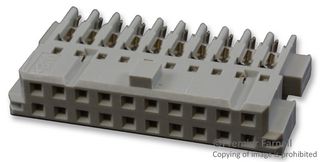

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 20 Contacts, Cable Mount
Image is for illustrative purposes only. Please refer to product description.
Manufacturer3M
Manufacturer Part NoCHG2020J01010KEP
Newark Part No.48F3037
Product RangeCHG Series
Also Known AsGTIN UPC EAN: 00054007663614
Technical Datasheet
88 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $13.880 |
| 10+ | $13.320 |
| 25+ | $12.150 |
| 50+ | $11.600 |
| 100+ | $10.990 |
| 250+ | $9.820 |
| 500+ | $9.260 |
| 1000+ | $8.110 |
Price for:Each
Minimum: 1
Multiple: 1
$13.88
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Manufacturer3M
Manufacturer Part NoCHG2020J01010KEP
Newark Part No.48F3037
Product RangeCHG Series
Also Known AsGTIN UPC EAN: 00054007663614
Technical Datasheet
IDC Connector TypeIDC Receptacle
Contact GenderFemale
Pitch Spacing2.54mm
No. of Rows2 Row
Product RangeCHG Series
No. of Contacts20Contacts
Connector MountingCable Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Product Overview
The CHG2020J01010KEP is a 20-way 2-row 0.100 x 0.100-inch Polarized Wire-to-board Socket for 0.100-inch pitch notched flat cable or discrete wire with gold-plated copper alloy contacts. This CHG series wire mount socket comes with glass filled polyester (PBT) insulation and accepts 22AWG stranded or 24AWG solid/stranded wire. It has polarization with centerbump (standard) and mates to 3M long latch/eject headers and plugs.
- Grey color
- Military/DIN 41612 compatibility
- Twin slot IDC provides four points of contact
- Exclusive L/H 4-wipe contact
- Accepts discrete wire or notched ribbon cable
- UL94V-0 Flammability rating
- <gt/>1 x 10⁹Ω at 500VDC Insulation resistance
