425AA
Banana Test Connector, Plug, Panel Mount, Gold Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
954 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $6.200 |
Price for:Each
Minimum: 1
Multiple: 1
$6.20
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABBATRON HH SMITH
Manufacturer Part No425AA
Newark Part No.95B9047
Technical Datasheet
Connector MountingPanel Mount
Current Rating-
Voltage Rating-
Contact PlatingGold Plated Contacts
Connector Colour-
Contact MaterialBrass
Contact Termination TypeScrew
Product Range-
SVHCNo SVHC (25-Jun-2020)
Product Overview

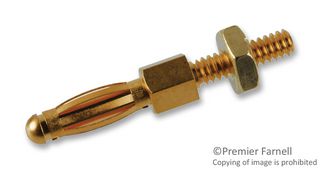

The 425AA is a gold-plated Caged Spring Banana Plug, body machined from brass with nickel-plated finish. Caged springs are made from beryllium copper and are nickel-plated. This caged spring banana plug features nine leaves for greater contact during use. It is designed with a 6-32 threaded post for ease of assembly.
Applications
Test & Measurement
Technical Specifications
Gender
Plug
Current Rating
-
Contact Plating
Gold Plated Contacts
Contact Material
Brass
Product Range
-
Connector Mounting
Panel Mount
Voltage Rating
-
Connector Colour
-
Contact Termination Type
Screw
SVHC
No SVHC (25-Jun-2020)
