ABM3B-12.000MHZ-B2-T
Crystal, Surface Mount, 12 MHz, SMD, 5mm x 3.2mm, 50 ppm, 18 pF, 20 ppm, ABM3B Series

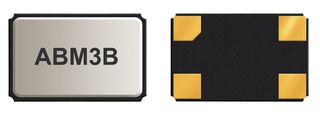

Image is for illustrative purposes only. Please refer to product description.
ManufacturerABRACON
Manufacturer Part NoABM3B-12.000MHZ-B2-T
Newark Part No.13J1733
Product RangeABM3B Series
Your Part Number
2,361 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price | Promotional price |
|---|---|---|
| 1+ | $1.060 | $0.513 |
| 10+ | $0.932 | $0.513 |
| 25+ | $0.858 | $0.513 |
| 50+ | $0.843 | $0.513 |
| 100+ | $0.827 | $0.513 |
| 250+ | $0.790 | $0.513 |
| 500+ | $0.762 | $0.513 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.51
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerABRACON
Manufacturer Part NoABM3B-12.000MHZ-B2-T
Newark Part No.13J1733
Product RangeABM3B Series
Technical Datasheet
Product RangeABM3B Series
Frequency Nom12MHz
Crystal TypeStandard
Crystal Frequency12MHz
Frequency Tolerance + / -20ppm
Frequency Stability + / -50ppm
Load Capacitance18pF
ESR70ohm
Crystal Case / PackageSMD, 5mm x 3.2mm
No. of Pins4Pins
Crystal MountingSMD
Operating Temperature Min-20°C
Operating Temperature Max70°C
SVHCNo SVHC (25-Jun-2025)
Alternatives for ABM3B-12.000MHZ-B2-T
1 Product Found
Product Overview
The ABM3B-12.000MHZ-B2-T is a 5.0 x 3.2 x 1.1mm Ceramic SMD Crystal Oscillator.
- Fundamental Mode
- Tight Stability
- Suitable for Reflow
- Ceramic Package and Metal Lid Assures High Precision and Reliability
- Seam Sealing
- Ageing ±5ppm Per Year Max
- 500MΩ Insulation Resistance
Applications
Communications & Networking, Consumer Electronics, Wireless, Industrial
Technical Specifications
Product Range
ABM3B Series
Crystal Type
Standard
Frequency Tolerance + / -
20ppm
Load Capacitance
18pF
Crystal Case / Package
SMD, 5mm x 3.2mm
Crystal Mounting
SMD
Operating Temperature Max
70°C
Frequency Nom
12MHz
Crystal Frequency
12MHz
Frequency Stability + / -
50ppm
ESR
70ohm
No. of Pins
4Pins
Operating Temperature Min
-20°C
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
