ABS06-32.768KHZ-1-T
Crystal, Low Profile, 32.768 kHz, SMD, 2mm x 1.2mm, 12.5 pF, 10 ppm, ABS06 Series

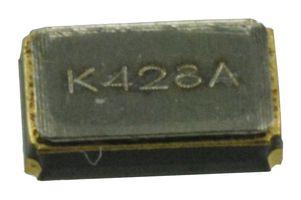

Image is for illustrative purposes only. Please refer to product description.
ManufacturerABRACON
Manufacturer Part NoABS06-32.768KHZ-1-T
Newark Part No.60R3990
Product RangeABS06 Series
Technical Datasheet
774 In Stock
3,000 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.912 |
| 25+ | $0.866 |
| 50+ | $0.815 |
| 100+ | $0.765 |
| 250+ | $0.718 |
| 500+ | $0.669 |
| 1000+ | $0.630 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.91
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABRACON
Manufacturer Part NoABS06-32.768KHZ-1-T
Newark Part No.60R3990
Product RangeABS06 Series
Technical Datasheet
Frequency Nom32.768kHz
Crystal CaseSMD, 2mm x 1.2mm
Frequency Stability + / --
Load Capacitance12.5pF
Frequency Tolerance + / -10ppm
Product RangeABS06 Series
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (07-Nov-2024)
Product Overview
The ABS06-32.768KHZ-1-T is a 2.0 x 1.2 x 0.6mm SMD Low Profile Crystal Oscillator. Hermetically sealed and not moisture sensitive.
- Miniature Size Ideal for High Density Circuit Boards
- Ceramic Package Offers Excellent Environmental & Heat Resistance
- Extended Industrial Temperature Range
- 90kΩ ESR
- Ageing ±3ppm Per Year Max
- 500MΩ Insulation Resistance
Applications
Communications & Networking, Consumer Electronics, Wireless, Industrial, Test & Measurement
Technical Specifications
Frequency Nom
32.768kHz
Frequency Stability + / -
-
Frequency Tolerance + / -
10ppm
Operating Temperature Min
-40°C
SVHC
No SVHC (07-Nov-2024)
Crystal Case
SMD, 2mm x 1.2mm
Load Capacitance
12.5pF
Product Range
ABS06 Series
Operating Temperature Max
85°C
Technical Docs (2)
Alternatives for ABS06-32.768KHZ-1-T
1 Product Found
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
