ABS07-32.768KHZ-T
Crystal, Low Profile, 32.768 kHz, SMD, 3.2mm x 1.5mm, 12.5 pF, 20 ppm, ABS07 Series

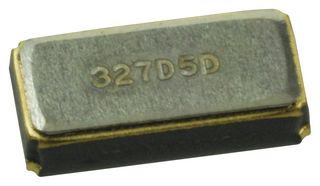

Image is for illustrative purposes only. Please refer to product description.
ManufacturerABRACON
Manufacturer Part NoABS07-32.768KHZ-T
Newark Part No.14N8749
Product RangeABS07 Series
Technical Datasheet
23,237 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.800 |
| 25+ | $0.798 |
| 50+ | $0.730 |
| 100+ | $0.704 |
| 250+ | $0.662 |
| 500+ | $0.619 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.80
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABRACON
Manufacturer Part NoABS07-32.768KHZ-T
Newark Part No.14N8749
Product RangeABS07 Series
Technical Datasheet
Frequency Nom32.768kHz
Crystal CaseSMD, 3.2mm x 1.5mm
Frequency Stability + / --
Load Capacitance12.5pF
Frequency Tolerance + / -20ppm
Product RangeABS07 Series
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (07-Nov-2024)
Product Overview
The ABS07-32.768KHZ-T is a 3.2 x 1.5 x 0.9mm SMD low profile crystal oscillator.
- Low frequency in small size SMD
- 0.9mm height ideal for high density circuit boards
- Seam sealed ceramic package offers excellent environmental & heat resistance
- Extended industrial temperature range
- 70kohm ESR
- Ageing ±3ppm per year max
- 500MΩ insulation resistance
- Hermetically sealed
Notes
Due to material availability, the outline and finish colour of the component may vary, this variation in no way affects the electrical performance of the product.
Technical Specifications
Frequency Nom
32.768kHz
Frequency Stability + / -
-
Frequency Tolerance + / -
20ppm
Operating Temperature Min
-40°C
SVHC
No SVHC (07-Nov-2024)
Crystal Case
SMD, 3.2mm x 1.5mm
Load Capacitance
12.5pF
Product Range
ABS07 Series
Operating Temperature Max
85°C
Technical Docs (2)
Alternatives for ABS07-32.768KHZ-T
7 Products Found
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
