70000
Toroidal Transformer, 1.6 VA, 115V, 230V, 2 x 7V, Dual Primary, Dual Secondary, Potted

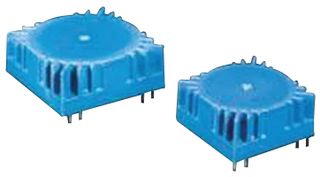

Image is for illustrative purposes only. Please refer to product description.
ManufacturerACME ELECTRIC
Manufacturer Part No70000
Newark Part No.87P0489
Product Range70000 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
| Quantity | Price |
|---|---|
| 10+ | $39.100 |
| 25+ | $38.340 |
| 50+ | $36.490 |
| 100+ | $32.770 |
| 250+ | $29.330 |
Price for:Each
Minimum: 10
Multiple: 10
$391.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerACME ELECTRIC
Manufacturer Part No70000
Newark Part No.87P0489
Product Range70000 Series
Technical Datasheet
Power Rating1.6VA
Secondary Voltages2 x 7V
Secondary Current Nom114mA
Transformer MountingThrough Hole
Winding TypeDual Primary, Dual Secondary
Primary Voltages115V, 230V
Toroid CenterPotted
Transformer TerminalsPC Pin
Outer Diameter39.6mm
Height18.5mm
Product Range70000 Series
SVHCTo Be Advised
Technical Specifications
Power Rating
1.6VA
Secondary Current Nom
114mA
Winding Type
Dual Primary, Dual Secondary
Toroid Center
Potted
Outer Diameter
39.6mm
Product Range
70000 Series
Secondary Voltages
2 x 7V
Transformer Mounting
Through Hole
Primary Voltages
115V, 230V
Transformer Terminals
PC Pin
Height
18.5mm
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
