ARK-1125H-S0A1U
SOC, N200, Alder Lake-N, 4 Core, 3.7GHz, 16GB RAM, -30°C to 60°C

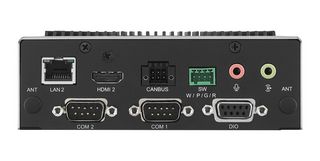

Image is for illustrative purposes only. Please refer to product description.
Available to Order by Phone
Delivery estimated post order confirmations.You will be charged on despatch.
Product Information
ManufacturerADVANTECH
Manufacturer Part NoARK-1125H-S0A1U
Newark Part No.02AM8016
Technical Datasheet
Processor Core Type-
Core NumberN200
Silicon Family NameAlder Lake-N
Processor Speed3.7GHz
RAM Memory Size16GB
Kit ContentsSoC N200, Terminal Block 1652007880-01/1652008233-01, DC Plug 96PSA-A60W12W7-3, Wrench, Manual
InterfacesRS422, RS232, RS485, USB 2.0, USB 3.2
Operating SystemUbuntu Linux, Windows 10 Enterprise
Operating Temperature Range-30°C to +60°C
FanlessYes
Product Overview
ARK-1125H-S0A1U is an ARK-1000 series ultra slim (palm-size) fanless embedded computer. It has an Intel® Processor N200 QC SoC with dual HDMI, dual GbE, dual serial ports, dual CANBus, Remote Switch, USB x4.
- Intel® processor N200 CPU and 4 core number
- 1.0GHz, max turbo frequency up to 3.7GHz
- 2x HDMI display, 2GbE and 2x USB 3.2, 2x USB 2.0
- 2 RS-232/422/485 and 2 M.2
- Mic-In, Line-Out audio
- DDR5 up to 4800MHz technology, 16GB max capacity
- 255 levels timer interval, setup by software watchdog timer and TPM 2.0 built in
- Windows 10 and Ubuntu 22.04 supported software
- 10.54W typical (OS idle mode) and 29.18W max (Full loading) power consumption
- 12VDC input voltage and AT/ATX power type
Technical Specifications
Processor Core Type
-
Silicon Family Name
Alder Lake-N
RAM Memory Size
16GB
Interfaces
RS422, RS232, RS485, USB 2.0, USB 3.2
Operating Temperature Range
-30°C to +60°C
Core Number
N200
Processor Speed
3.7GHz
Kit Contents
SoC N200, Terminal Block 1652007880-01/1652008233-01, DC Plug 96PSA-A60W12W7-3, Wrench, Manual
Operating System
Ubuntu Linux, Windows 10 Enterprise
Fanless
Yes
