ASMB-927T2-00A1

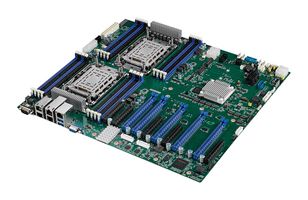

Scalable EATX Server Board, C741, Xeon, 0 °C to 40 °C
Image is for illustrative purposes only. Please refer to product description.
ManufacturerADVANTECH
Manufacturer Part NoASMB-927T2-00A1
Newark Part No.77AK5230
Your Part Number
Technical Datasheet
Available to Order by Phone
Delivery estimated post order confirmations.You will be charged on dispatch.
Product Information
ManufacturerADVANTECH
Manufacturer Part NoASMB-927T2-00A1
Newark Part No.77AK5230
Technical Datasheet
Silicon ManufacturerIntel
Silicon Family Name-
Core ArchitectureXeon
Core Sub-Architecture-
Silicon Core NumberC741
Kit ContentsServer Brd, SATA Data Cable, SATA Pwr Cable, 2x CPU Cable, Screw, I/O Shield, 2x CPU Carrier, Manual
Product Range-
SVHCTo Be Advised
Product Overview
- LGA4677 EATX server board with 4th Gen. Xeon® Scalable processor
- Intel C741 chipset
- DDR5 4800MHz RDIMM up to 4TB (16 DIMMs) supports Intel® Optane™ persistent memory
- Four PCIe x16 and two PCIe x8
- Intel® X710-AT2 dual 10GbE ports
- 3 x RJ45 connector
- Nine SATA3.0 and one M.2 connector (SATA/PCIe compatible)
- 0 ~ 40°C ambient operating temperature range
- IPMI 2.0 software
- Dimension (L x H) is 12" x 13"
Contents
LGA4677 ATX server board, Startup manual x 1, SATA data cables x 1, SATA power cables x 1, CPU power cable x 2, Screw for M.2 device x 1, I/O shield x 1, LGA4677 CPU carrier - E1B x 2.
Technical Specifications
Silicon Manufacturer
Intel
Core Architecture
Xeon
Silicon Core Number
C741
Product Range
-
Silicon Family Name
-
Core Sub-Architecture
-
Kit Contents
Server Brd, SATA Data Cable, SATA Pwr Cable, 2x CPU Cable, Screw, I/O Shield, 2x CPU Carrier, Manual
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
