PCE-5132G2-00A3
Single Board Computer, Q470E, Intel Core i9/i7/i5/i3/Pentium/Celeron, 3.8GHz, 64GB

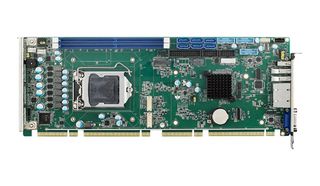

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Delivery estimated post order confirmations.You will be charged on despatch.
| Quantity | Price |
|---|---|
| 1+ | $1,356.590 |
Price for:Each
Minimum: 1
Multiple: 1
$1,356.59
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerADVANTECH
Manufacturer Part NoPCE-5132G2-00A3
Newark Part No.25AM6168
Technical Datasheet
Processor Core TypeIntel Core i9/i7/i5/i3/Pentium/Celeron
Core NumberQ470E
Silicon Family Name-
Processor Speed3.8GHz
RAM Memory Size64GB
Kit ContentsSBC Q470E, 2x Serial ATA HDD Data Cable, 1-Port COM Cable Kit, Warranty Card, Startup Manual
InterfacesEthernet, IrDA, LAN, PCIe, SATA, USB
Operating System-
Operating Temperature Range0°C to 60°C
FanlessNo
Product Overview
PCE-5132G2-00A3 is a LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron system host board with DDR4, dual GbE and triple displays.
- Up to 64GB of dual-channel (non-ECC) DDR4 2666/2933MHz
- PCIe 3.0, M.2, USB 3.2, SATA 3.0, and SW Raid 0, 1, 5, 10
- Supports out-of-band remote management with AMT
- Supports Advantech’s LPC modules, SUSI 4.0, and embedded software APIs
- Q470E PCH, Non-ECC memory and PCE-5BXX, PCE-7BXX backplane
- Features 2 LAN, VGA, 2 COM, 6 SATA III, 1 M.2, 6 SATA III
- Features 6 USB 2.0, 6 USB3.2 (Gen1), 2 USB3.2 (Gen2), S/W raid and AMT
Contents
System host board, Serial ATA HDD data cable x2, 1-port COM cable kit x1, Warranty card x1, Startup manual.
Notes
Legacy platform is not supported.
Technical Specifications
Processor Core Type
Intel Core i9/i7/i5/i3/Pentium/Celeron
Silicon Family Name
-
RAM Memory Size
64GB
Interfaces
Ethernet, IrDA, LAN, PCIe, SATA, USB
Operating Temperature Range
0°C to 60°C
Core Number
Q470E
Processor Speed
3.8GHz
Kit Contents
SBC Q470E, 2x Serial ATA HDD Data Cable, 1-Port COM Cable Kit, Warranty Card, Startup Manual
Operating System
-
Fanless
No
