ROM-DK2820-F1A1E
Evaluation Kit, i.MX93, 64bit, ARM Cortex-A55F/Cortex-M33F

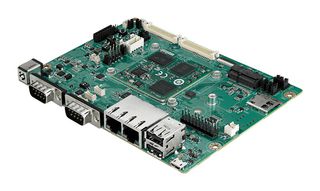

Image is for illustrative purposes only. Please refer to product description.
Available to Order by Phone
Delivery estimated post order confirmations.You will be charged on despatch.
Product Information
ManufacturerADVANTECH
Manufacturer Part NoROM-DK2820-F1A1E
Newark Part No.24AM0802
Technical Datasheet
Silicon ManufacturerNXP
No. of Bits64bit
Silicon Family Namei.MX93
Core ArchitectureARM
Core Sub-ArchitectureCortex-A55F, Cortex-M33F
Silicon Core Numberi.MX93
Kit ContentsBrd ROM-2820, Carrier Brd ROM-ED93, CODEC Brd ROM-EG51, Mod ROM-2820, MICRO SD Card, Adaptor, Cables
Product Range-
SVHCTo Be Advised
Product Overview
ROM-DK2820-F1A1E is a development kit for OSM 1.1 Computer-on-Module ROM-2820 (ROM-2820 evaluation kit).
- NXP Arm® Cortex®-A55 i.MX 93 dual up to 1.7GHz
- 1 x Arm Cortex-M33 core
- Onboard 2GB LPDDR4X up to 3733MT/s memory
- 1 x 4 lane MIPI-DSI, 1 x single channel LVDS (display output, either one)
- 2 x USB 2.0, 1 x I2S, 1 x SDIO, 5 x UART, 1 x SPI, 2 x CAN-FD, 16 x GPIO
- Support Ycoto Linux operating system
- Ethernet: 2 x NXP i.MX 93 integrated RGMII Chipset, 2 x 10/100/1000Mbps speed
- External RTC
- 12V power supply voltage and 4.82W power consumption
- Operating temperature range from -40 to 85°C
Contents
ROM-ED93 OSM carrier board, ROM-EG51 A101 ASS'Y CODEC board, ROM-2820 OSM V1.1 module, Adapter 100-240V 36W 12V 3A, M cable PH JACK D3.5/1x2P-1.25 15cm, M cable PH JACK D3.5/1x3P-1.25 15cm, Debug cable 1x4P-1.25/D-SUB 9P(F) 60cm, M cable D-SUB 9P(F)/D-SUB 9P(F) RS232/RS485 100c, SQF MICRO SD C10 MLC 16G (-40~85°C), M cable USB-A 4P(M)/micro USB-B 5P(M) 100cm, BKL cable 1x4P-1.25/1x5P-2.0 50cm, LVDS cable 1x20P-1.0/2x20P-1.25 50cm.
Technical Specifications
Silicon Manufacturer
NXP
Silicon Family Name
i.MX93
Core Sub-Architecture
Cortex-A55F, Cortex-M33F
Kit Contents
Brd ROM-2820, Carrier Brd ROM-ED93, CODEC Brd ROM-EG51, Mod ROM-2820, MICRO SD Card, Adaptor, Cables
SVHC
To Be Advised
No. of Bits
64bit
Core Architecture
ARM
Silicon Core Number
i.MX93
Product Range
-
