AEMC INSTRUMENTS 6240
Ohmmeter, Micro, 4-Wire, 0.004ohm, 0.040ohm, 0.4ohm, 4ohm, 40ohm, 400ohm, 0.1 ohm, 10 A, 250 mm
- Manufacturer:
- AEMC INSTRUMENTS AEMC INSTRUMENTS
- Manufacturer Part No:
- 6240
- Newark Part No.:
- 72M5352
- Technical Datasheet:
- 6240 Datasheet
- ECAD / MCAD
-
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 4-Wire
- :
- 0.004ohm, 0.040ohm, 0.4ohm, 4ohm, 40ohm, 400ohm
- :
- 0.1ohm
- :
- 10A
- :
- -
- :
- 250mm
- :
- 270mm
- :
- 180mm
- :
- 10lb
- :
- -
Technical Documents (4)
Product Overview

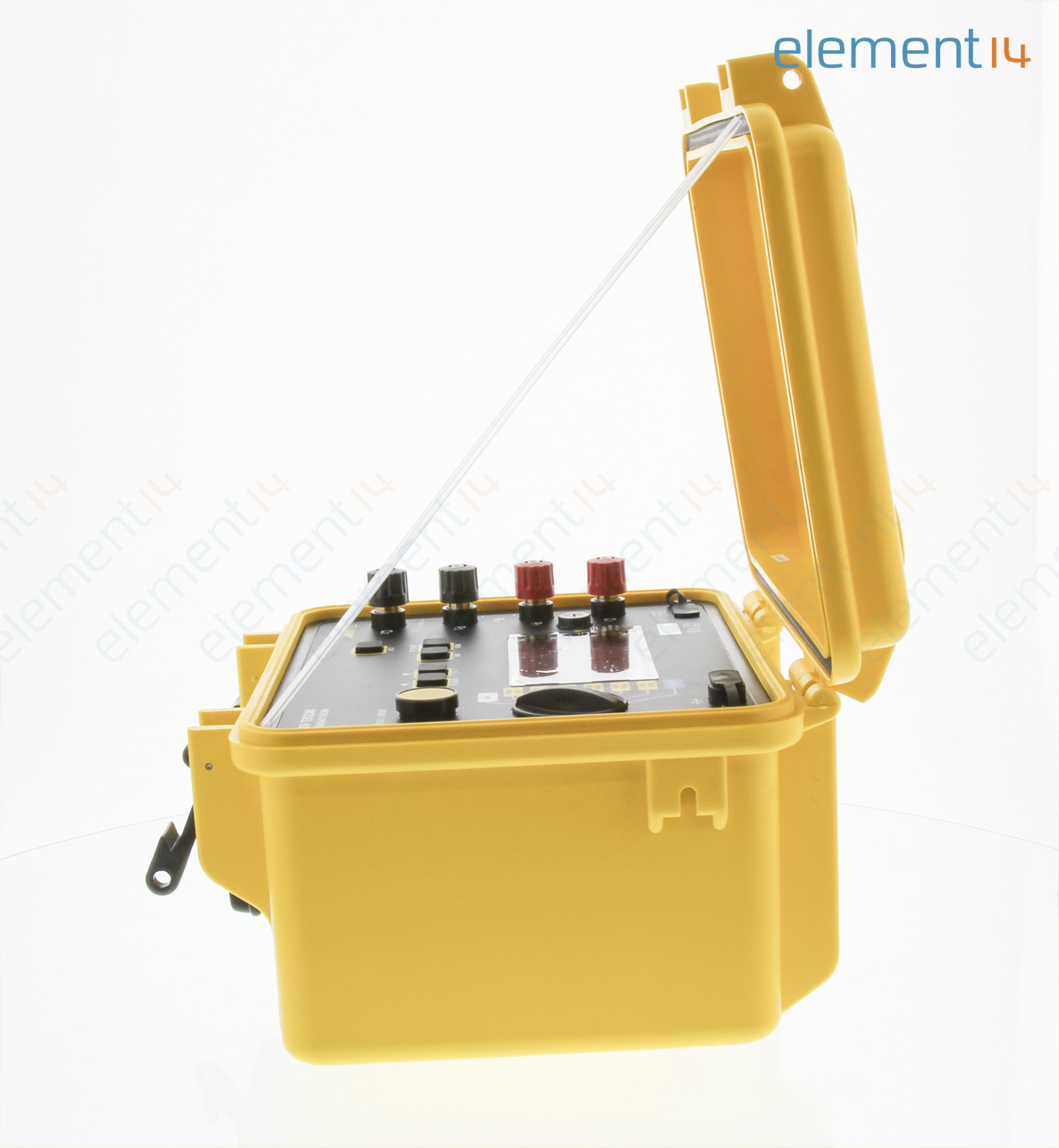

The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%. Resistance measurements are automatically calculated from 1µΩ to 400Ω with resolutions down to 1µΩ. The Model 6240 has selectable test currents of 10A, 1A, 100mA and 10mA and includes a polarity reversal function. The Model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC. The DataView Software included allows you to configure the instrument, temperature compensate the test results, as well as, store data and print reports.
- Measures from 1µΩ to 400Ω
- Test current selection from 10mA to 10A
- Manual temperature compensation (with DataView® software)
- Front panel polarity reverse function
- Stores up to 99 test results
- Operator safety by automatic discharge of residual charge on the equipment under test
- Auto store of multiple test results
- Internal, rechargeable batteries conduct up to 850, 10A tests
- Battery pack recharger recharges batteries by connecting to the AC line using a standard line cord
- 4-Wire measurement with automatic compensation of undesirable voltages and lead resistance
- Large multi-function backlit display
- Direct display of the measurement with its units, range and test current
- Rugged, sealed case
Applications
Sensing & Instrumentation, Test & Measurement, Portable Devices
Contents
10A Kelvin Clips (Hippo) and DataView Software.
