TRD13D10WL04
Rocker Switch, On-None-On, SPDT, Non Illuminated, Panel Mount, Black, TRD Series

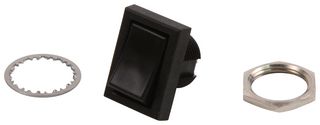

Image is for illustrative purposes only. Please refer to product description.
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part NoTRD13D10WL04
Newark Part No.16M2494
Product RangeTRD Series
Technical Datasheet
68 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $20.090 |
| 10+ | $20.090 |
| 25+ | $20.090 |
| 50+ | $20.090 |
| 100+ | $20.090 |
Price for:Each
Minimum: 1
Multiple: 1
$20.09
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part NoTRD13D10WL04
Newark Part No.16M2494
Product RangeTRD Series
Technical Datasheet
Switch OperationOn-None-On
Contact ConfigurationSPDT
IlluminationNon Illuminated
Switch MountingPanel Mount
Actuator / Cap ColourBlack
Product RangeTRD Series
Contact Current Max3A
Contact Current AC Max3A
Contact Voltage AC Nom125V
Contact Voltage VAC120V
Contact Current DC Max3A
Contact Voltage VDC28V
Panel Cutout Height-
Panel Cutout Width-
Panel Cutout Diameter12mm
Switch TerminalsSolder Lug
SVHCNo SVHC (07-Jul-2017)
Alternatives for TRD13D10WL04
1 Product Found
Product Overview
The TRD series Rocker Switch available in single and double pole models. It has rocker and paddle actuator with wire-lug, wire-wrap, quick-connect and printed circuit terminal versions.
- Epoxy terminal seal
- Available in gold and silver contact options
- Break-before-make contact timing
- LED illumination options
Applications
Industrial, Medical
Technical Specifications
Switch Operation
On-None-On
Illumination
Non Illuminated
Actuator / Cap Colour
Black
Contact Current Max
3A
Contact Voltage AC Nom
125V
Contact Current DC Max
3A
Panel Cutout Height
-
Panel Cutout Diameter
12mm
SVHC
No SVHC (07-Jul-2017)
Contact Configuration
SPDT
Switch Mounting
Panel Mount
Product Range
TRD Series
Contact Current AC Max
3A
Contact Voltage VAC
120V
Contact Voltage VDC
28V
Panel Cutout Width
-
Switch Terminals
Solder Lug
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Jul-2017)
