AS6C6416-55TIN
SRAM, Asynchronous, 64 Mbit, 4M x 16bit, TSOP-I, 48 Pins, 2.7 V

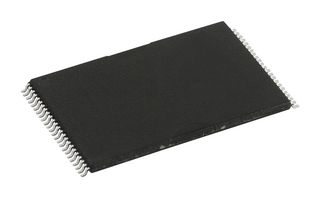

Image is for illustrative purposes only. Please refer to product description.
ManufacturerALLIANCE MEMORY
Manufacturer Part NoAS6C6416-55TIN
Newark Part No.82AK3853
Technical Datasheet
68 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $33.690 |
| 5+ | $33.690 |
| 10+ | $33.690 |
| 25+ | $31.290 |
| 50+ | $29.200 |
| 100+ | $29.200 |
| 250+ | $28.470 |
Price for:Each
Minimum: 1
Multiple: 1
$33.69
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerALLIANCE MEMORY
Manufacturer Part NoAS6C6416-55TIN
Newark Part No.82AK3853
Technical Datasheet
SRAM TypeAsynchronous
Memory Density64Mbit
Memory Configuration4M x 16bit
IC Case / PackageTSOP-I
No. of Pins48Pins
Supply Voltage Min2.7V
Supply Voltage Max3.6V
Supply Voltage Nom3V
Clock Frequency Max-
IC MountingSurface Mount
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
MSLMSL 3 - 168 hours
SVHCNo SVHC (27-Jun-2024)
Product Overview
AS6C6416-55TIN is a 64Mbits (4Mx16) low-power CMOS SRAM. It is a 67,108,864-bit low-power CMOS static random access memory organized as 4,194,304 words by 16bits or 8,388,608 words by 8bits. It is fabricated using very high-performance, high-reliability CMOS technology. Its standby current is stable within the range of operating temperature. It is well designed for low-power applications, and particularly well suited for battery backup nonvolatile memory applications.
- Fast access time is 55ns
- Low power consumption: 12mA (typ) operating current, 12µA(typ) standby current
- Single 2.7V to 3.6V power supply
- All inputs and outputs TTL compatible
- Fully static operation, tri-state output
- Data retention voltage is 1.2V (minimum)
- 48-pin TSOP I package
- Operating temperature range from -40°C to +85°C
- Output leakage current is 1µA maximum (VCC ≧ VOUT ≧ VSS, output disabled)
Technical Specifications
SRAM Type
Asynchronous
Memory Configuration
4M x 16bit
No. of Pins
48Pins
Supply Voltage Max
3.6V
Clock Frequency Max
-
Operating Temperature Min
-40°C
Product Range
-
SVHC
No SVHC (27-Jun-2024)
Memory Density
64Mbit
IC Case / Package
TSOP-I
Supply Voltage Min
2.7V
Supply Voltage Nom
3V
IC Mounting
Surface Mount
Operating Temperature Max
85°C
MSL
MSL 3 - 168 hours
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
