1-745491-7

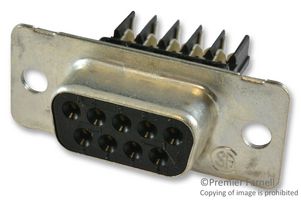

D Sub Connector, DB9, 9 Contacts, Receptacle, IDC / IDT, DE, AMPLIMITE HDE-20 Series, Metal Body
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No1-745491-7
Newark Part No.42K6561
Product RangeAMPLIMITE HDE-20 Series
Your Part Number
Technical Datasheet
122 In Stock
Need more?
118 Delivery in 1-3 Business Days(US stock)
4 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $9.690 |
| 10+ | $8.890 |
| 25+ | $8.090 |
| 50+ | $7.820 |
| 100+ | $7.540 |
| 250+ | $7.220 |
| 500+ | $7.070 |
Price for:Each
Minimum: 1
Multiple: 1
$9.69
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No1-745491-7
Newark Part No.42K6561
Product RangeAMPLIMITE HDE-20 Series
Technical Datasheet
D Sub Connector TypeStandard
Product RangeAMPLIMITE HDE-20 Series
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeIDC / IDT
Connector MountingCable Mount, Panel Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector Body MaterialMetal Body
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 1-745491-7 is a 9-way 2-row IDC Standard D-sub Receptacle with thermoplastic insert and gold-plated phosphor bronze contacts. This Amplimite HDE-20 series metal-shell IDC connector comes with tin-plated steel shell, mounting holes and tin over nickel-plated solder tail. It accepts 26 to 22AWG wire.
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
D Sub Connector Type
Standard
Product Range
AMPLIMITE HDE-20 Series
D Sub Shell Size
DE
Connector Mounting
Cable Mount, Panel Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Gender
Receptacle
No. of Contacts
9Contacts
Contact Termination Type
IDC / IDT
Contact Material
Phosphor Bronze
Connector Body Material
Metal Body
Alternatives for 1-745491-7
1 Product Found
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
