1-770251-0
Contact, Universal MATE-N-LOK II Series, Socket, Crimp, 14 AWG, Gold Plated Contacts

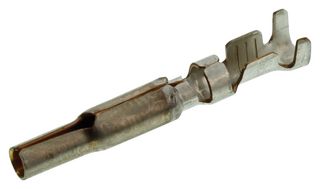

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No1-770251-0
Newark Part No.87K2216
Product RangeUniversal MATE-N-LOK II Series
Technical Datasheet
9,922 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.960 |
| 10+ | $2.580 |
| 25+ | $2.420 |
| 50+ | $2.350 |
| 100+ | $2.270 |
| 500+ | $1.980 |
| 1000+ | $1.840 |
| 2500+ | $1.760 |
Price for:Each
Minimum: 1
Multiple: 1
$2.96
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No1-770251-0
Newark Part No.87K2216
Product RangeUniversal MATE-N-LOK II Series
Technical Datasheet
Product RangeUniversal MATE-N-LOK II Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max14AWG
Contact PlatingGold Plated Contacts
For Use WithUniversal MATE-N-LOK II Housings
Wire Size AWG Min20AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 1-770251-0 is a socket Crimp Contact made of phosphor bronze with gold plated finish. It accepts 20 to 14AWG wire size. This contact is suitable for standard Universal MATE-N-LOK II connectors.
- 600VAC Operating voltage
Applications
Industrial
Technical Specifications
Product Range
Universal MATE-N-LOK II Series
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
20AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
14AWG
For Use With
Universal MATE-N-LOK II Housings
Contact Material
Phosphor Bronze
