163086-1
Circular Connector Contact, Multimate, Type III+ Series, Pin, Crimp, 20 AWG, 24 AWG

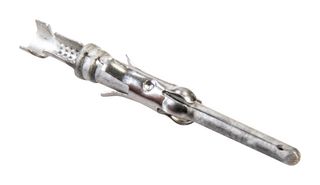

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No163086-1
Newark Part No.72K7582
Product RangeType III+ Series
Technical Datasheet
8,646 In Stock
Need more?
496 Delivery in 1-3 Business Days(US stock)
8150 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $1.850 |
| 10+ | $1.740 |
| 25+ | $1.600 |
| 50+ | $1.590 |
| 100+ | $1.560 |
| 500+ | $1.320 |
Price for:Each
Minimum: 1
Multiple: 1
$1.85
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No163086-1
Newark Part No.72K7582
Product RangeType III+ Series
Technical Datasheet
Product RangeType III+ Series
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max20AWG
Contact PlatingTin Plated Contacts
Wire Size AWG Min24AWG
For Use WithType III+ Series Connectors
Contact MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 163086-1 is a Crimp Pin with brass body, tin-plating. 24 to 20AWG wire. This crimp pin is suitable for use with brass body, Type III+ series connectors.
- 13A Test current
- 0.062" Contact diameter
Applications
Industrial
Technical Specifications
Product Range
Type III+ Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
For Use With
Type III+ Series Connectors
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Pin
Wire Size AWG Max
20AWG
Wire Size AWG Min
24AWG
Contact Material
Brass
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
