173631-1

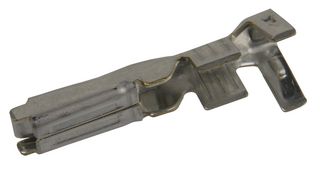

Contact, Multilock 070 Series, Socket, Crimp, 16 AWG, Tin Plated Contacts, MULTILOCK Connectors
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No173631-1
Newark Part No.11H9122
Product RangeMultilock 070 Series
Technical Datasheet
18,393 In Stock
Need more?
10267 Delivery in 1-3 Business Days(US stock)
8126 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $0.223 |
| 25+ | $0.177 |
| 100+ | $0.160 |
| 250+ | $0.151 |
| 500+ | $0.144 |
| 1000+ | $0.137 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.22
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No173631-1
Newark Part No.11H9122
Product RangeMultilock 070 Series
Technical Datasheet
Product RangeMultilock 070 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max16AWG
Contact PlatingTin Plated Contacts
For Use WithMULTILOCK Connectors
Wire Size AWG Min20AWG
Contact MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 173631-1 is a crimp Receptacle Contact with brass body, tin-plating. 20 to 16AWG wire. This crimp receptacle contact is suitable for use with brass body, MULTILOCK connectors.
- 10A Typical current rating
- -30 to 105°C Operating temperature range
Applications
Automotive
Technical Specifications
Product Range
Multilock 070 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
20AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
16AWG
For Use With
MULTILOCK Connectors
Contact Material
Brass
