193844-1

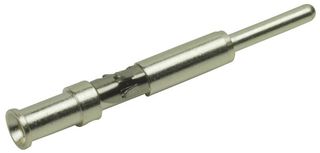

Circular Connector Contact, Multimate, Type II/III+ Series, Pin, Crimp, 14 AWG
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No193844-1
Newark Part No.50B506
Product RangeType II/III+ Series
Technical Datasheet
629 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $12.630 |
| 10+ | $12.620 |
| 25+ | $11.960 |
| 50+ | $11.460 |
| 100+ | $10.940 |
| 250+ | $10.930 |
| 500+ | $10.890 |
Price for:Each
Minimum: 1
Multiple: 1
$12.63
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No193844-1
Newark Part No.50B506
Product RangeType II/III+ Series
Technical Datasheet
Product RangeType II/III+ Series
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max-
Contact PlatingSilver Plated Contacts
For Use WithG Series, M Series, CPC Connectors
Wire Size AWG Min14AWG
Contact MaterialCopper
SVHCLead
Product Overview
The 193844-1 is a pin Power Contact for use with the type II series connector in crimp style. It accepts 2mm² wire size and made of brass with silver-plated finish. The features of the high current size 16-contact have been designed to retrofit into the existing AMP connectors such as CPC (circular plastic connector), CMC (circular metal connector), G series, M series, Metrimate square grid and drawer connector housings. An initial T-rise test in free air has shown a 23A capability with a 30degree T-rise.
- Beryllium copper Louvertac band
- Stainless steel retention spring
Applications
Power Management
Technical Specifications
Product Range
Type II/III+ Series
Contact Termination Type
Crimp
Contact Plating
Silver Plated Contacts
Wire Size AWG Min
14AWG
SVHC
Lead
Contact Gender
Pin
Wire Size AWG Max
-
For Use With
G Series, M Series, CPC Connectors
Contact Material
Copper
Associated Products
7 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
