193991-4

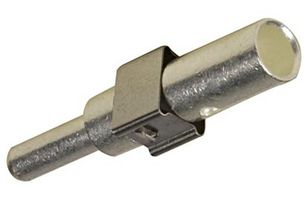

Circular Connector Contact, Multimate, Type XII Series, Pin, Crimp, 8 AWG, G Series, CPC Connectors
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No193991-4
Newark Part No.90B3338
Product RangeType XII Series
Technical Datasheet
778 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $10.020 |
| 10+ | $10.020 |
| 25+ | $10.020 |
| 50+ | $10.020 |
| 100+ | $10.020 |
| 250+ | $10.020 |
| 500+ | $10.020 |
Price for:Each
Minimum: 1
Multiple: 1
$10.02
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No193991-4
Newark Part No.90B3338
Product RangeType XII Series
Technical Datasheet
Product RangeType XII Series
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max8AWG
Wire Size AWG Min-
For Use WithG Series, CPC Connectors
Contact PlatingSilver Plated Contacts
Contact MaterialCopper Alloy
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 193991-4 is a 8-size high current Pin Contact for use with the AMP connector such as CPC (circular plastic connector), CMC (circular metal-shell connector), G series and M series housings in crimp style. The type XII series contacts is made of copper alloy with silver-plated finish. An initial T-rise test in free air has shown a 60A capability with a 30degree T-rise with 8 gauge wires. The contact may be crimped onto 8AWG wire with a Daniels hand tool M310 or AMP P/N 356114-1 and Positioner TP1068S or AMP P/N 356119-1.
- UL Standard
Applications
Power Management
Technical Specifications
Product Range
Type XII Series
Contact Termination Type
Crimp
Wire Size AWG Min
-
Contact Plating
Silver Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Pin
Wire Size AWG Max
8AWG
For Use With
G Series, CPC Connectors
Contact Material
Copper Alloy
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
