5-103957-2

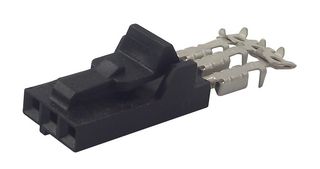

The 5-103957-2 is a 3-way 1-row MTE Receptacle Assembly with gold-plated phosphor bronze contacts. The wire-to-board connector assembly comes with black thermoplastic housing, latch and strain relief. The AMPMODU MTE interconnection system is utilized in wire-to-board and wire-to-wire applications and can be found in many types of electronic equipment. The receptacle assembly mates with headers. Coupling shrouds permit ganging of smaller receptacle and pin assemblies with guide ribs to form larger single or double row latching connectors.

• Assembly designs offer latching and polarization
• Swage option on posts provides retention in PC board
• 5000MΩ Insulation resistance
• UL94V-0 Flammability rating
• 3A Contact current rating
• 267V Operating voltage
• 15mΩ Termination resistance
• -65 to 105°C Operating temperature range

Applications

Medical, Automotive, Computers & Computer Peripherals, Commercial, Sensing & Instrumentation, Test & Measurement, Communications & Networking
