770145-1
Contact, Commercial 0.093" Series, Pin, Crimp, 14 AWG, Tin Plated Contacts

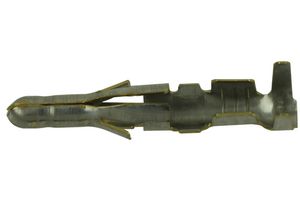

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No770145-1
Newark Part No.16H5735
Product RangeCommercial 0.093" Series
Technical Datasheet
1,209 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.278 |
| 10+ | $0.233 |
| 25+ | $0.208 |
| 100+ | $0.189 |
| 500+ | $0.160 |
| 1000+ | $0.137 |
| 2500+ | $0.132 |
| 5000+ | $0.127 |
Price for:Each
Minimum: 1
Multiple: 1
$0.28
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No770145-1
Newark Part No.16H5735
Product RangeCommercial 0.093" Series
Technical Datasheet
Product RangeCommercial 0.093" Series
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max14AWG
Contact PlatingTin Plated Contacts
For Use With.093" Commercial Pin and Socket Connectors
Wire Size AWG Min20AWG
Contact MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 770145-1 is a pin Crimp Contact made of brass with tin plated finish. It accepts 20 to 14AWG wire size. This contact is suitable for 0.093-inch pin and socket connectors.
- Locking lance contact retention
- 250VAC/DC Operating voltage
- 13A Contact current rating
Applications
Industrial, Commercial
Technical Specifications
Product Range
Commercial 0.093" Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
20AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Pin
Wire Size AWG Max
14AWG
For Use With
.093" Commercial Pin and Socket Connectors
Contact Material
Brass
Associated Products
7 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
