MS25036-156
Ring Tongue Terminal, M4, #8, 10 AWG, 6 mm², PIDG Series, Yellow

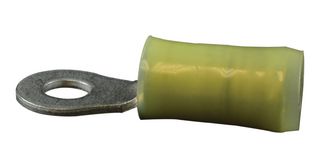

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part NoMS25036-156
Newark Part No.10M5403
Product RangePIDG Series
Technical Datasheet
6,235 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.532 |
| 10+ | $0.487 |
| 25+ | $0.487 |
| 100+ | $0.487 |
| 500+ | $0.450 |
| 1000+ | $0.450 |
| 2500+ | $0.417 |
Price for:Each
Minimum: 1
Multiple: 1
$0.53
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part NoMS25036-156
Newark Part No.10M5403
Product RangePIDG Series
Technical Datasheet
Stud Size - MetricM4
Stud Size - Imperial#8
Wire Size AWG Max10AWG
Conductor Area CSA6mm²
Product RangePIDG Series
Insulator ColourYellow
Insulator MaterialNylon (Polyamide)
SVHCNo SVHC (08-Jul-2021)
Product Overview
The MS25036-156 is a yellow Crimp Ring Tongue Terminal, M4 stud, 12 to 10AWG wire, copper with tin plating and nylon insulated terminal.
- Closed barrel
- Straight terminal
- 300V voltage rating (maximum)
- Pre-insulated
Technical Specifications
Stud Size - Metric
M4
Wire Size AWG Max
10AWG
Product Range
PIDG Series
Insulator Material
Nylon (Polyamide)
Stud Size - Imperial
#8
Conductor Area CSA
6mm²
Insulator Colour
Yellow
SVHC
No SVHC (08-Jul-2021)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
