48235-000LF
Contact, FCI Mini PV Series, Socket, Crimp, 22 AWG, Gold Plated Contacts

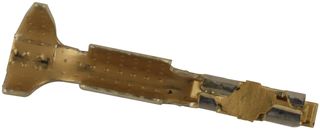

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
Manufacturer Part No48235-000LF
Newark Part No.84K5749
Product RangeFCI Mini PV Series
Technical Datasheet
824 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.529 |
| 10+ | $0.420 |
| 25+ | $0.387 |
| 50+ | $0.372 |
| 100+ | $0.355 |
| 250+ | $0.327 |
| 500+ | $0.312 |
| 1000+ | $0.296 |
Price for:Each
Minimum: 1
Multiple: 1
$0.53
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
Manufacturer Part No48235-000LF
Newark Part No.84K5749
Product RangeFCI Mini PV Series
Technical Datasheet
Product RangeFCI Mini PV Series
Contact Termination TypeCrimp
Wire Size AWG Max22AWG
Contact PlatingGold Plated Contacts
For Use WithMini PV Series Wire-to-Board Connectors
Wire Size AWG Min26AWG
Contact MaterialCopper Alloy
SVHCNo SVHC (17-Jan-2023)
Product Overview
The 48235-000LF is a Mini-PV™ Basics+ Centerline Crimp-to-Wire Socket Contact accepts 22 to 26AWG wire range. The contact is made of copper alloy with 0.76µm gold plated finish. The 48235 series mates with most 2.54mm centerline products with 0.64mm square or round pins.
- Standard spring force
- Copper alloy spring
- 1.27µm Nickel underplating
Applications
Industrial
Technical Specifications
Product Range
FCI Mini PV Series
Wire Size AWG Max
22AWG
For Use With
Mini PV Series Wire-to-Board Connectors
Contact Material
Copper Alloy
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
26AWG
SVHC
No SVHC (17-Jan-2023)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
