PWF-03BFFA-SL7001
Circular Connector, IP67, Circular Industrial, PWF (12A) Series, Cable Mount Receptacle, 3 Contacts

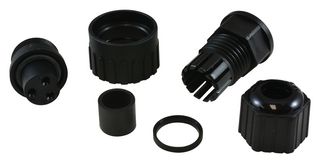

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL LTW
Manufacturer Part NoPWF-03BFFA-SL7001
Newark Part No.48W0759
Product RangePWF (12A) Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 10+ | $13.900 |
Price for:Each
Minimum: 10
Multiple: 10
$139.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL LTW
Manufacturer Part NoPWF-03BFFA-SL7001
Newark Part No.48W0759
Product RangePWF (12A) Series
Technical Datasheet
Connector TypeCircular Industrial
Product RangePWF (12A) Series
Circular Connector Shell StyleCable Mount Receptacle
No. of Contacts3Contacts
Circular Contact TypeSolder Socket
Coupling StyleThreaded
Connector Body MaterialNylon (Polyamide), Glass Filled Body
Connector Body Plating-
Contact MaterialCopper Alloy
Contact PlatingGold
SVHCNo SVHC (17-Jan-2023)
Product Overview
The PWF-03BFFA-SL7001 is a 3-position Circular Receptacle with socket type gold-plated copper alloy contacts. The PWF (12A) series circular connector for cable without S/R.
- Assembly type
- 12A Current rating
- 5mΩ Contact resistance
- ≥100MΩ at 250VDC Insulation resistance
- IP67 Protection rating (waterproof)
Applications
Industrial
Technical Specifications
Connector Type
Circular Industrial
Circular Connector Shell Style
Cable Mount Receptacle
Circular Contact Type
Solder Socket
Connector Body Material
Nylon (Polyamide), Glass Filled Body
Contact Material
Copper Alloy
SVHC
No SVHC (17-Jan-2023)
Product Range
PWF (12A) Series
No. of Contacts
3Contacts
Coupling Style
Threaded
Connector Body Plating
-
Contact Plating
Gold
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
